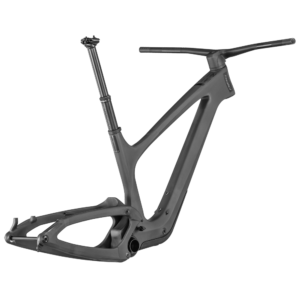

BOLD 22 Frame Linkin Limited

$7,999.00$8,499.00 SGD

Intended Use: Trail/ All Mountain
Travel (Rear): 135mm & 150mm compatible
Travel (Front): 140-160mm

Frame: Full Carbon HMX/ Internal Suspension Technology (IST)
Compatibility: 27.5″+ and 29″ wheel sizes
Feature: IST Virtual Pivot

Includes:

  • FOX NUDE 5T Factory or FOX NUDE 5T
  • Syncros Hixon iC Carbon
  • Syncros Pro lock-on grips
  • Syncros Duncan Dropper Post 1.5 34.9mm
  • Link kit for 135 & 150mm travel
  • Tracloc Remote Control Shifter Kit
  • Syncros – Acros Pro Headset System
  • Save the Day Kit
  • Syncros rear axle
Clear
SKU: N/A Category:

Frame stiffness, lowest center of gravity and optimum shock performance are the key benefits to our Internal Suspension Technology. The condition of the rear shock has a significant impact on suspension performance. The shock is always protected from dirt, water and crashes to ensure it is functioning at its best.

With the shock placed internally, we are able to design an ultra compact linkage system for low weight and high stiffness. The linkage is directly attached to the shock and mounted to an axle inside the frame, meaning the suspension pivots no longer have to be constructed around the frame.

The integration concept features a clever storage solution for tools inside the frame which is easily accessible by opening the downtube cover. The kit includes a spare tube, mini pump, tire levers and a spot for chain quick links to save your day, in case of a flat tire.

Having the ability to tune the bottom bracket height and head angle allows you to optimize the geometry and handling for you and your trails. With the Flip-Chip on the Bold VarioTec you can change the bottom bracket height by 6.3 mm giving the LINKIN frame the availability to be customized off-the-shelf.

SPECIFICATIONS

Frame

Bold Linkin Carbon HMX

Rear Shock

FOX NUDE 5T Factory EVOL Trunnion // Custom w. travel // geo adj. // 3 modes: Lockout Traction Control-Descend // Custom large Air volume // DPS // Kashima // Reb. Adj. // Travel 150-100-Lockout // T185X55mm

or

FOX NUDE 5T EVOL Trunnion // Custom w. travel // geo adj. // 3 modes: Lockout Traction Control-Descend // Custom large Air volume // DPS // Anodized // Reb. Adj. // Travel 150-100-Lockout // T185X55mm

Handlebar

Syncros Hixon iC Carbon // Size S & M 15mm rise // Size L & XL 25mm rise // back sweep 8° // 780mm // Syncros Pro lock-on grips

Seatpost

Syncros Duncan Dropper Post 1.5 34.9mm // Size S 150mm // Size M 170mm // Size L & XL 200mm

Equipment

Save the Day Kit

Accessories

Link kit for 135 & 150mm travel // Tracloc Remote Control Shifter Kit // Syncros – Acros Pro Headset System // Syncros rear axle

Weight / with Save The Day Kit

3099gr / 3499gr

SIZE CHART

Color

white, black

Shock

Fox Nude 5T Factory, Fox Nude 5T

Size (Frame)

S, M, L, XL
