CHARACTERISTICS
Built using Campagnolo’s Hand Made Ultra-Light Carbon (H.U.L.C.), the rims have Campagnolo’s mirror-like Luxury (C-LUX) finish, and undrilled 2-Way Fit rim beds, for perfect tubeless compatibility without rim tape. Campagnolo’s beautifully moulded carbon fibre front hub body is hourglass shaped to improve aerodynamics, and is securely bonded to a light aluminium hub flange. Integrated radial spoke seats ensure perfect alignment, hidden Aero Mo-Mag nipples and slimmer Aero Elliptical spokes in Campagnolo’s G3 spoke pattern further enhance performance, and its CULT ceramic bearings promise almost frictionless rotation. The aluminium rear with 36 tooth ratchet system can be driven by N3W, XDR or HG freehub bodies.
The completely redesigned Bora Ultra WTO 33 rim now has a 21mm internal width, and is compatible with tyres from 25mm, aerodynamically optimised for this starting compatible tyre dimension.
The Bora Ultra WTO 33 2-Way Fit rim meets ETRTO tubeless standard for fast-rolling tubeless tyre fitment, and is also suitable for tubeless-ready and clincher tyres too.
Wider tyres on wider rims create greater air volume and better sidewall support, and especially when tubeless, can confidently be used at reduced pressures, improving grip, control and comfort, and lessening fatigue without affecting speed.

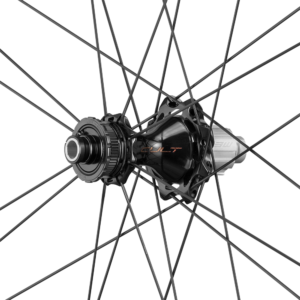

The hub bodies are slimmer in the centre to reduce the frontal area they present to the wind.
The 24 double butted Aero Elliptical spokes in each wheel have reduced from 1.6mm to 1.5mm in diameter.
New Aero Mo-Mag nipples are hidden inside the rim to clean up the airflow over them, and are still easily adjustable.#STOP AND GO
All of the new Bora Ultra WTO wheels are designed for AFS (centerlock compatible) disc rotors.

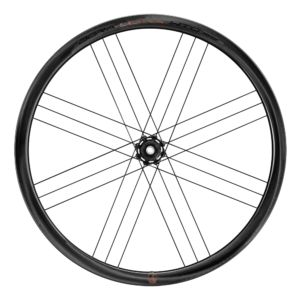

Campagnolo’s unique G3 spoke system counteracts the main source of torque at each hub.
CULT ceramic bearings keep the Bora Ultra WTO hubs spinning freely for 5 ½ times than standard steel bearings.
Oversized 36 tooth ratchet freehub is fast to engage and very durable, plus it accepts N3W, XDR, HG freehub bodies.
TECHNICAL SPECIFICATIONS
- 1,385 g
- Spokes: 24 Aero Elliptical, straight pull, double-butted 1.5mm
- Spoke pattern: G3
- Nipples: Aluminium Aero Mo-Mag, self-locking, internal
- Front: Bora Ultra,carbon body
- Rear: Aluminium body, 36 tooth ratchet freehub
- Hub width: 100-142mm
- Axle type: 12mm aluminium thru axle
- Bearings: CULT ceramic, cup and cone
- Brake interface: AFS disc
- Freehub compatibility: N3W, XDR, HG
- ASTM classification: 1
- Material: H.U.L.C. UD high-strength carbon fibre
- Finish: C-LUX
- Tyre interface: 2-Way Fit
- Tyre compatibility: Tubeless, tubeless-ready, clincher
- Recommended tyre size: 700c, from 25mm
- Rim height: 33mm
- Internal width: 21mm
- External width: 27.4mm
- Decals: Water transfer DCS (Dark, copper shaded)
- The Bora™ Ultra WTO™ 33 Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability
Comes with:
- Aero Mo-Mag nipple maintenance kit
- Tubeless valves
- AFS lockrings
- Campagnolo wheel bags
- Campagnolo accessories bag
- Tyre levers
- Campagnolo N3W Z11 adapter (on Campy freehub version)
