CHARACTERISTICS
The Levante ultra-light carbon rims use the same H.U.L.C. hand-moulding process as our Bora Ultra WTO rims that dominate professional racing. This highly advanced production technique creates guaranteed defect-free rims, ensuring the maximum weight-to-strength ratio and an impeccable aesthetic finish right out of the mould.
The 2-Way Fit rim profile, with its specially designed mini-hook, also guarantees optimal compatibility with tubeless tyres, with tyre grip guaranteed at a variety of pressures.
Levante rims use a unique and meticulously tested blend of resin and carbon fibre to further improve strength and durability. The lasered graphics on both the rim and the hubs have been designed to ensure the maximum durability of the wheel aesthetics in all usage conditions.
The 25 mm inner width of the Levante rim can accommodate a wide range of tyres from 38 mm up to 76 mm, ensuring maximum compatibility over all types of terrain. The shallow central channel makes the initial seating of the tubeless tyre on the 2-Way Fit rim quicker and easier during inflation.
The small mini-hook ensures a much cleaner interface between rim and tyre. Like a hookless rim, the mini-hook avoids a ‘bulb’ shaped profile when using larger tyres, providing greater stability and traction.
The mini-hook is also safer than a hookless rim when using smaller volume tyres at higher pressures. The system complies with the ETRTO clincher and tubeless standards, so Levante wheels can be matched to your favourite tyre, whatever it may be.
The rim design allows the utmost versatility in tyre use, from the most comfortable to the largest for gravel use (starting from 38 mm and going up to the largest, 45/50 mm).
Thanks to the patented MoMag system and the upper bridge with no holes, :LEVANTE is ready for use with tubeless tyres but without requiring tape for the seal. Easy maintenance and cleaning guaranteed.
LEVANTE: perfect for long off-road biking adventures.
TECHNICAL SPECIFICATIONS
- 1,485 g
- 24 slim steel circular-section spokes at the front, in a two-cross pattern
- 24 slim steel circular-section spokes at the back, in a two-cross pattern

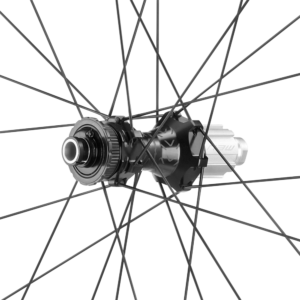

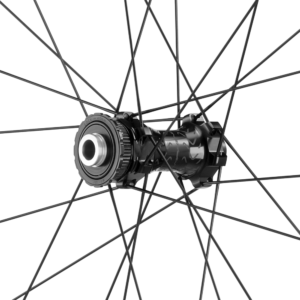

- Black aluminium monolithic hub
- Cup-and-cone
- Hub edge: 100 mm in the front, 142 mm in the rear
- Pivot material: aluminium
- Cup-and-cone bearing system
- Profile height: 30 mm
- Rim material: carbon
- Rim cross section (H x W): 30/30.8 mm
- Internal diameter of rim: 25 mm
- Lasered graphics
- The LEVANTE™ Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability.
Comes with:
- 50 mm tubeless valve
- Bushing to reduce the size of the valve hole
- 2 levers in composite material for tyre removal
- User manual
- Padded wheel bags
- Accessories bag
