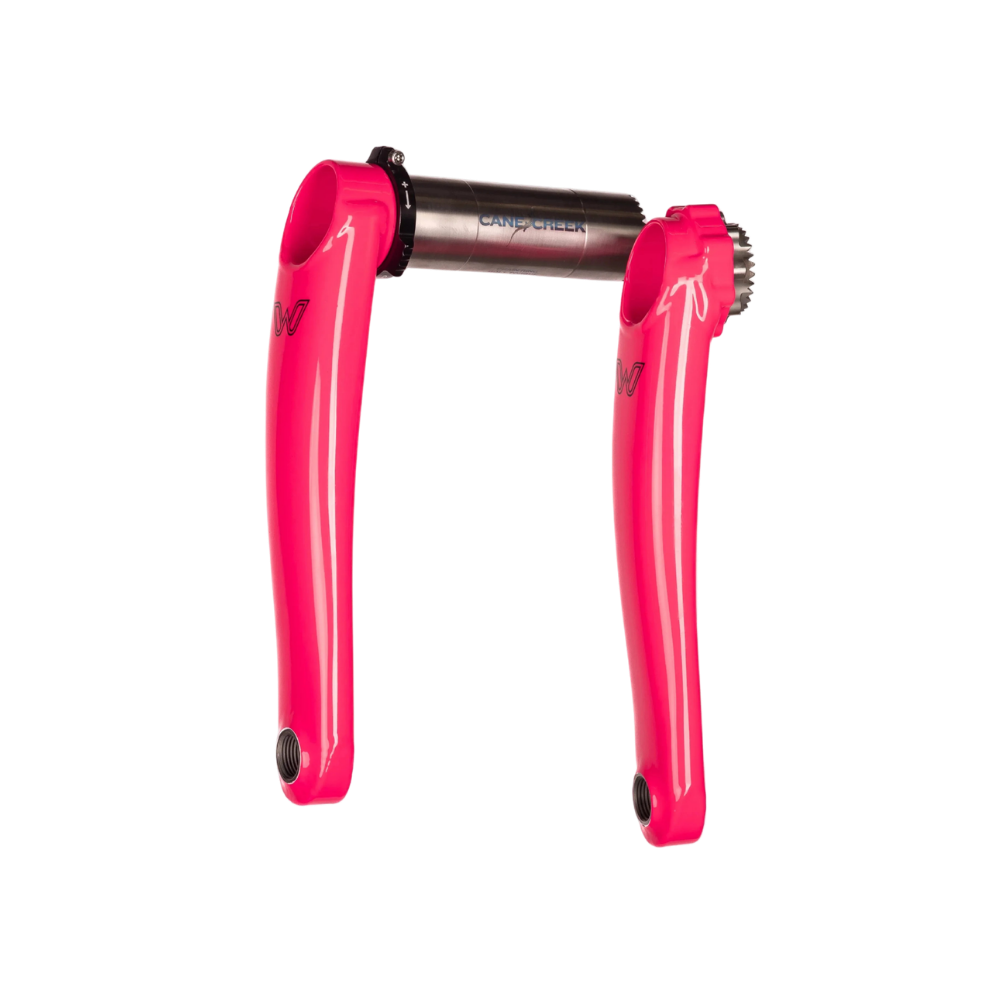

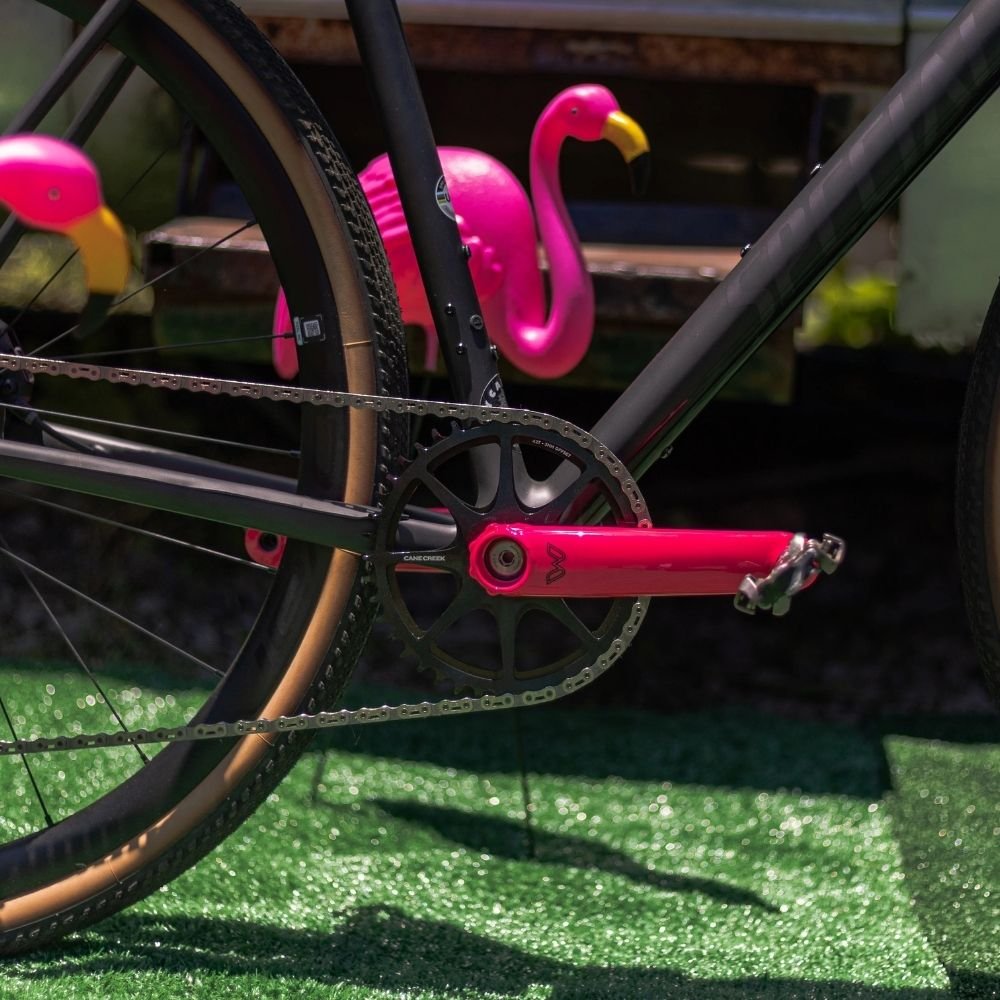

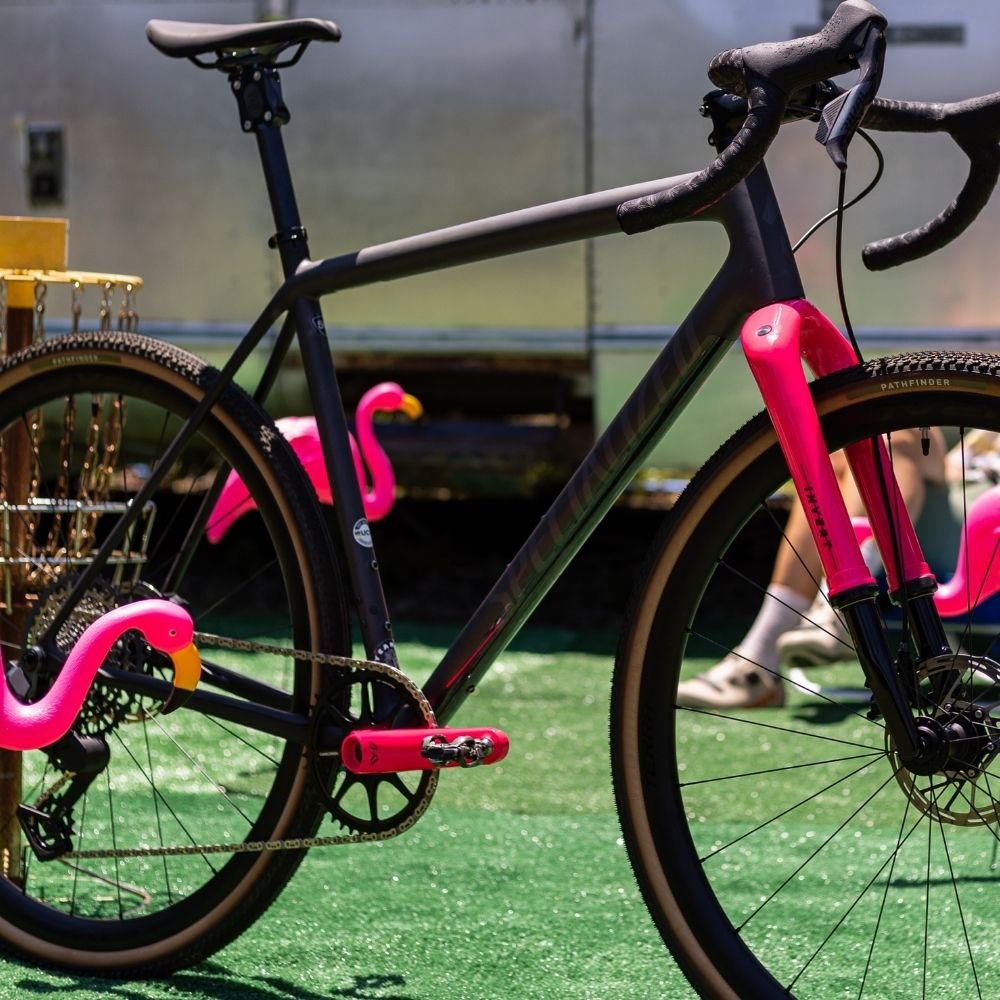

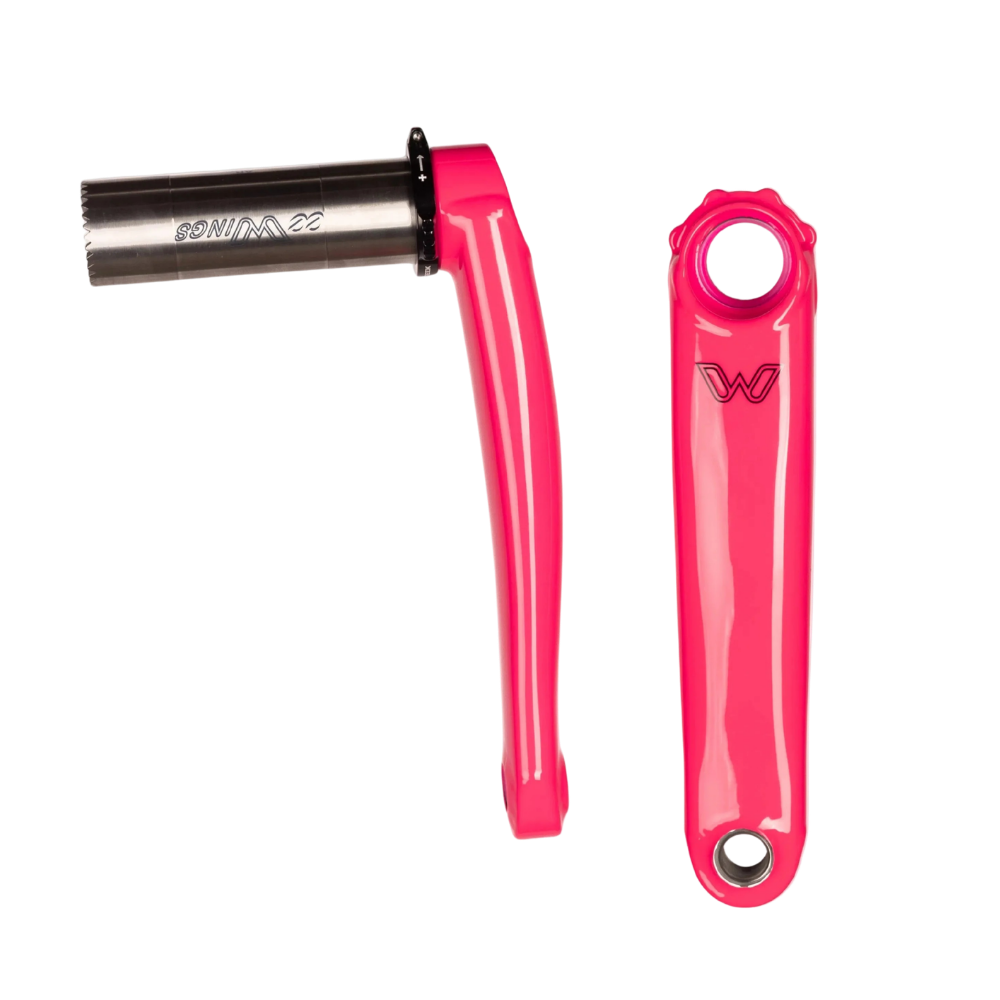

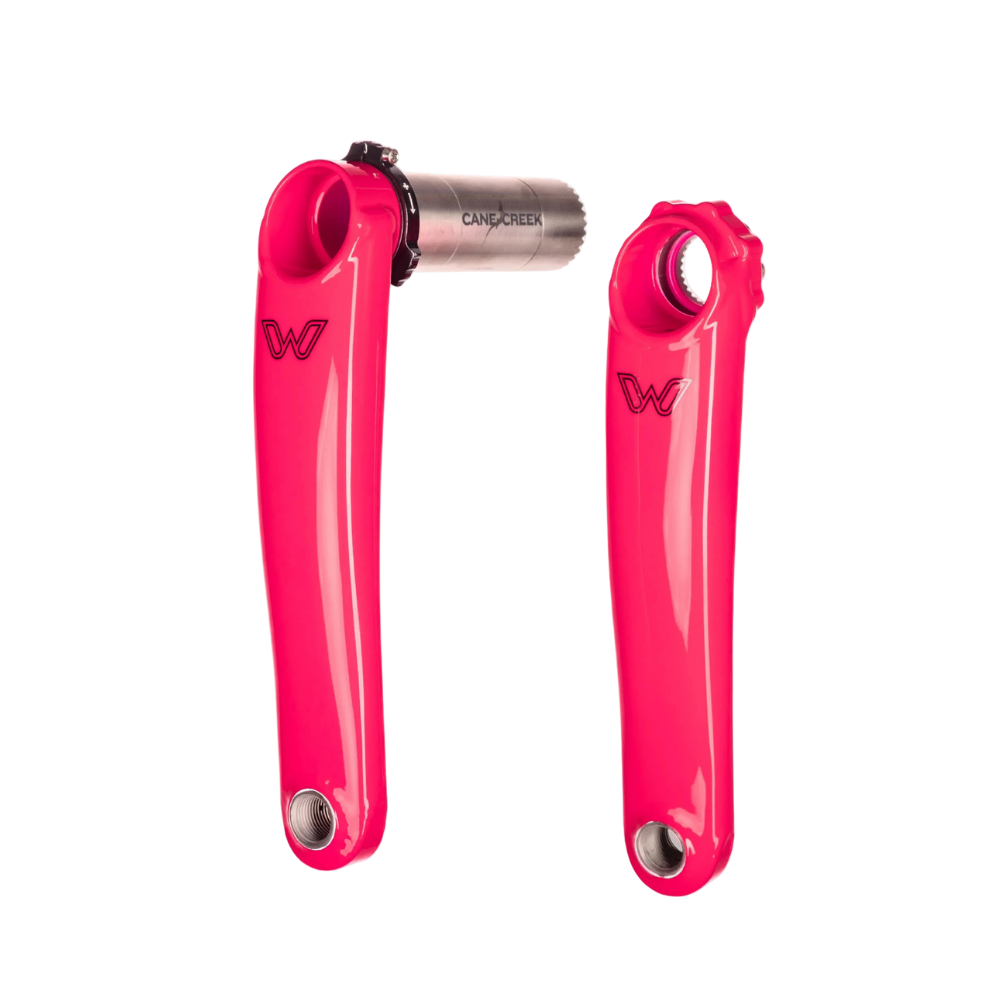

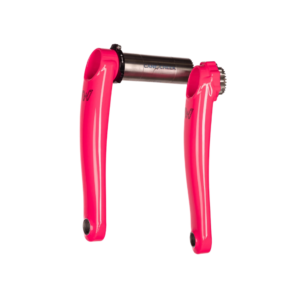

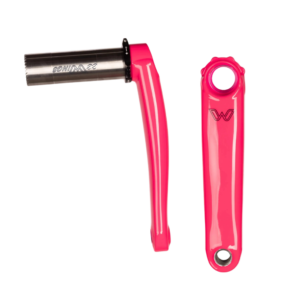

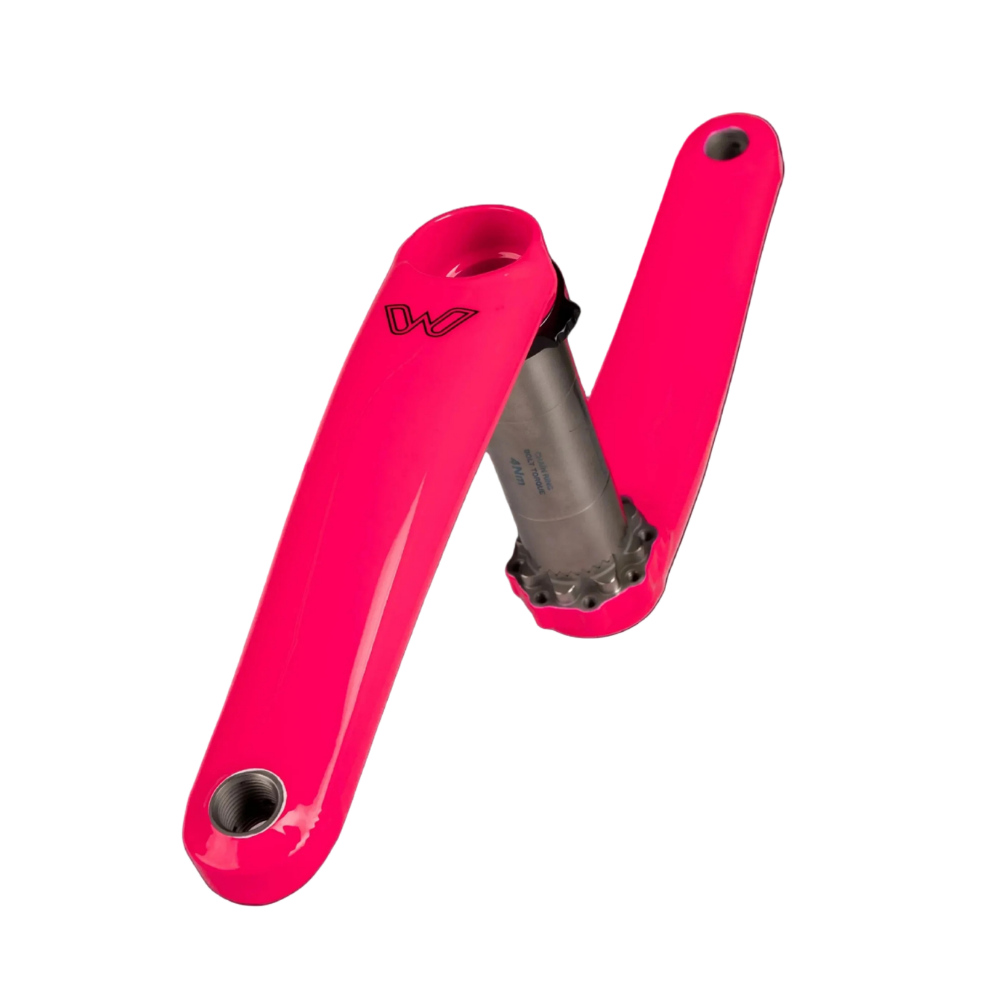

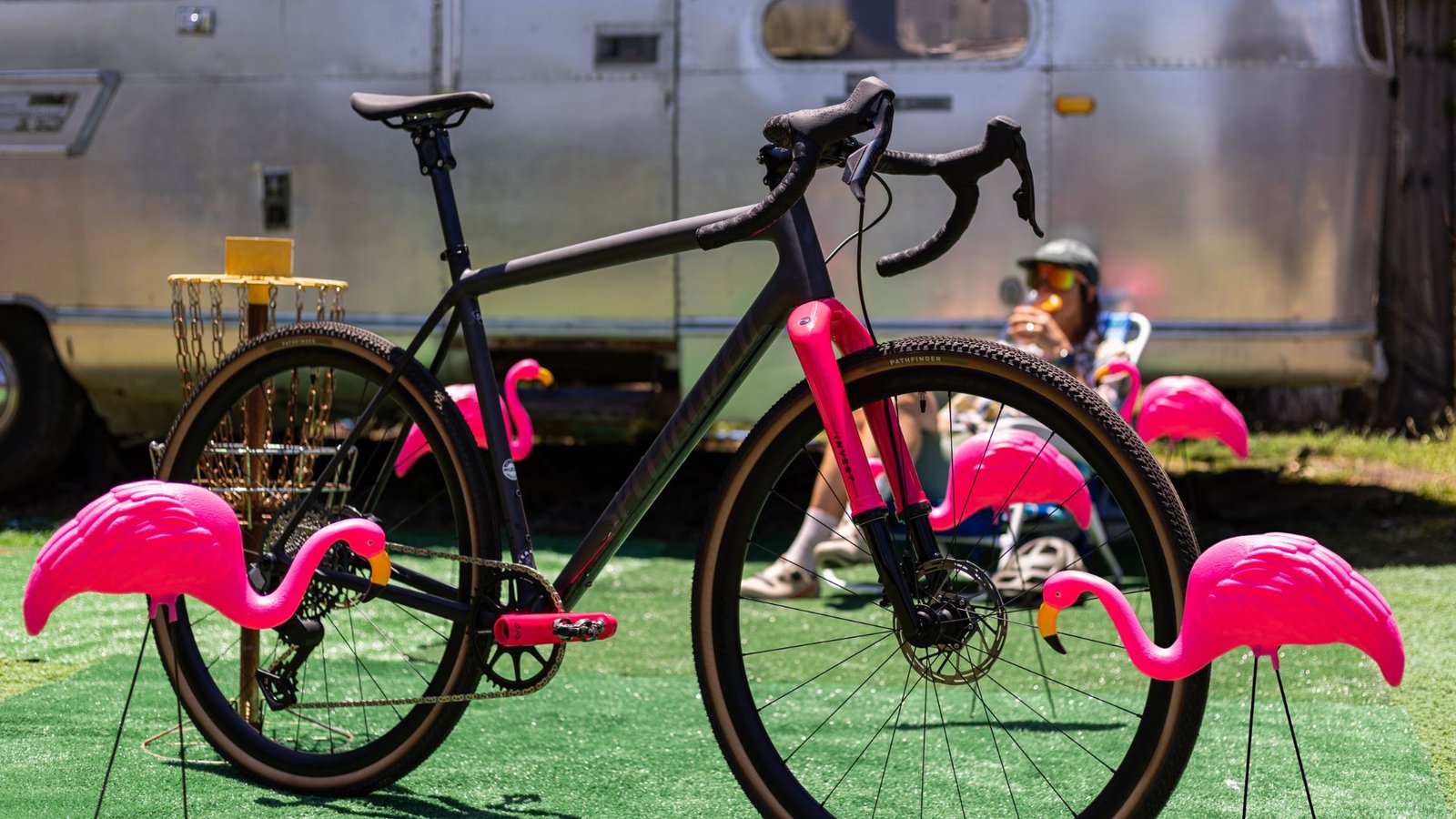

eeWings Flamingo

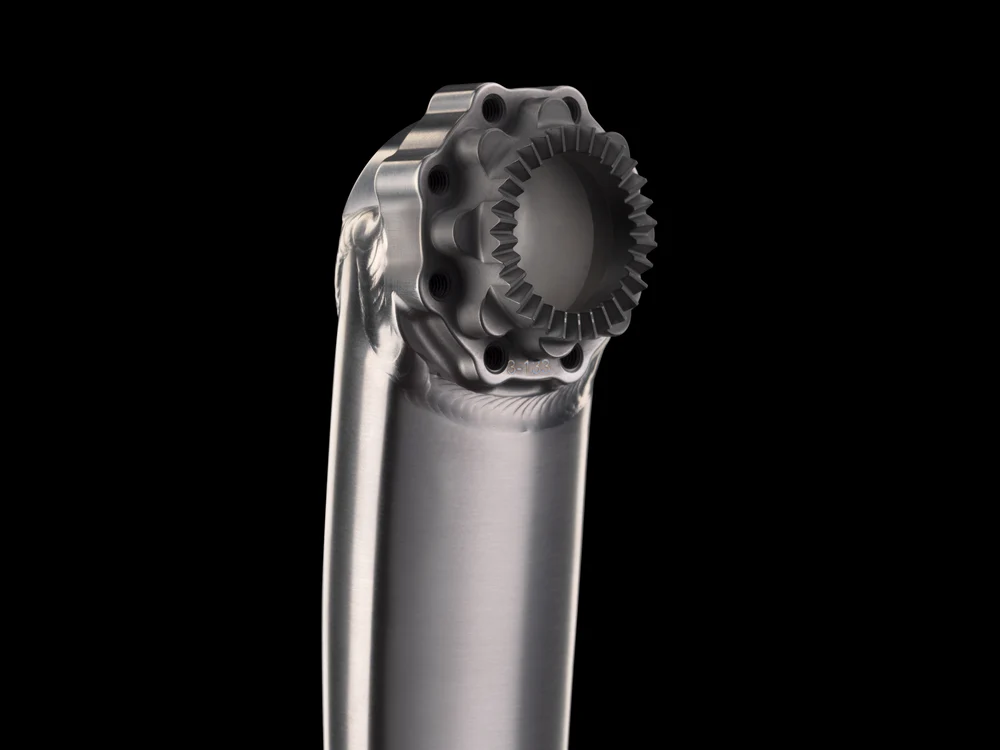

Hirth Joint
- Compact and lightweightÂ
- Minimizes overlapping and redundant material yet maintains incredible torsional rigidity with very few partsÂ
- Promotes the most direct power transfer possibleÂ
- Precision machined from 6/4 titaniumÂ
- Secured with a single, oversized stainless steel fixing bolt

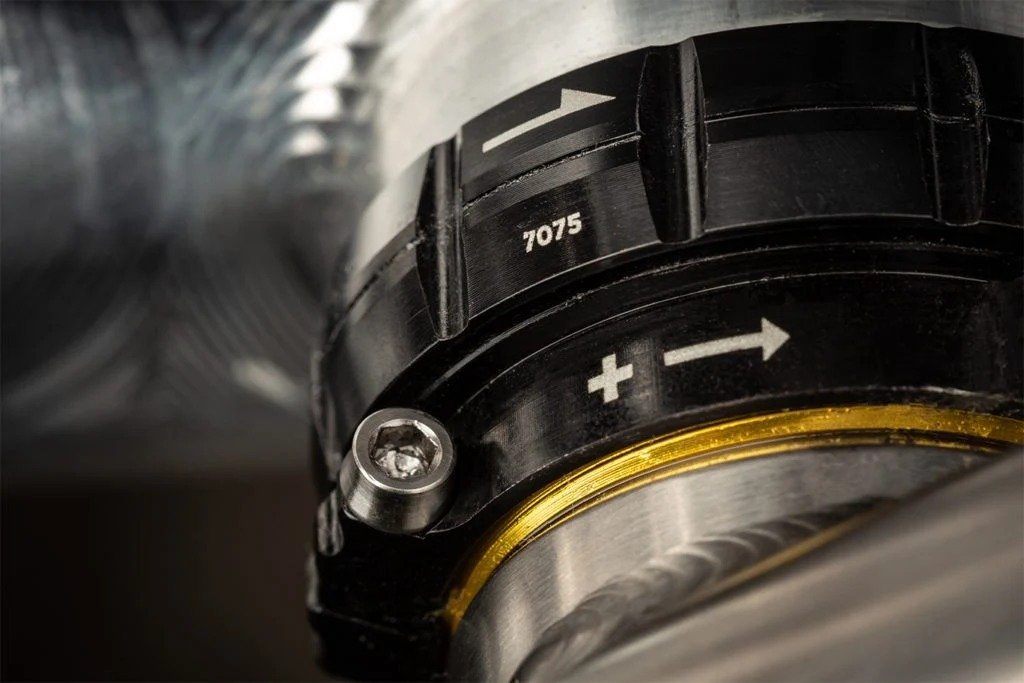

CNC'd Aluminum Preloader
The small details are often the ones that make the biggest difference. eeWings come with a fully machined, 7000 series aluminum preloader for precisely setting the preload on your bottom bracket bearings and ensuring a perfect fit with your frame.
- Titanium pinch boltÂ
- 2.5mm head for confident, secure adjustment. Â
- Also available individually for use on other, third-party cranksÂ
Product Specifications

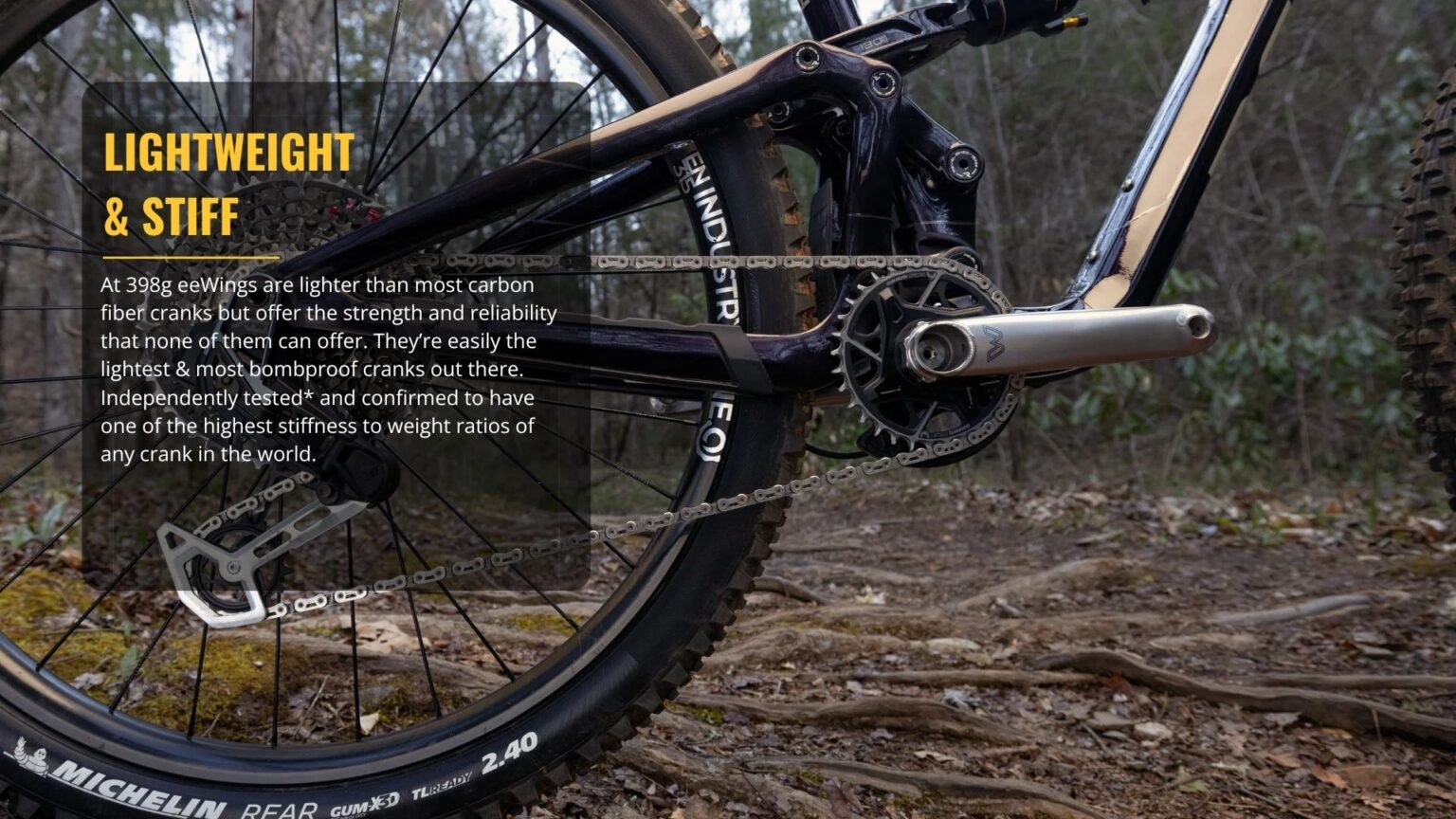

Weight
398g (AR, 165mm)
Materials
Butted 3/2.5 titanium arms with CNC 6/4 titanium spindle and Hirth joint
Hardware
Stainless steel 8mm crank fixing bolt and chainring bolts
Lengths
MTN: 160mm, 165mm, 170mm | AR: 165mm, 170mm, 172.5mm
Q Factor
MTN: 176mm | AR: 160mm
Preload Adjustment
Cane Creek CNC machined 7075 T-6 aluminum preloader
Spindle
30MM

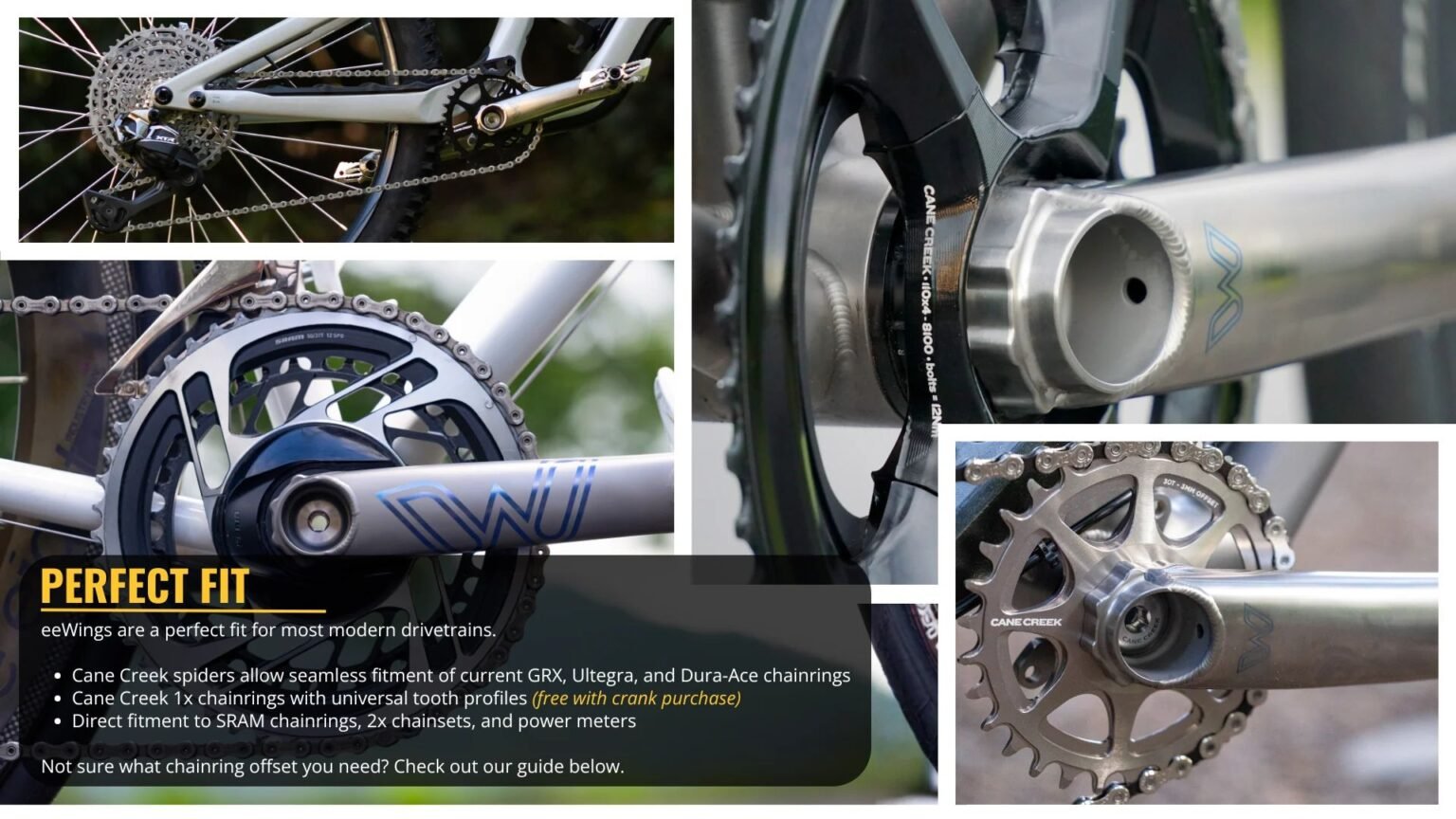

Chainring Interface
Compatible with Shimano GRX, Dura Ace, and Ultegra using Cane Creek Chainring Spider.
Warranty
Lifetime
Part #s
BAI0315 – MTN 160mm
BAI0312 – AR 165mm
BAI0316 – MTN 165mm
BAI0313 – AR 170mm
BAI0317 – MTN 170mm
BAI0314 – AR 172.5mm
