SMOOTHER, FASTER, MORE CONFIDENT

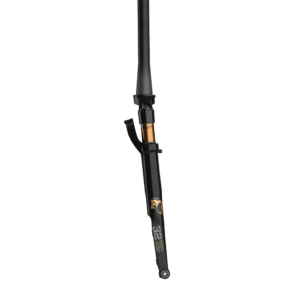

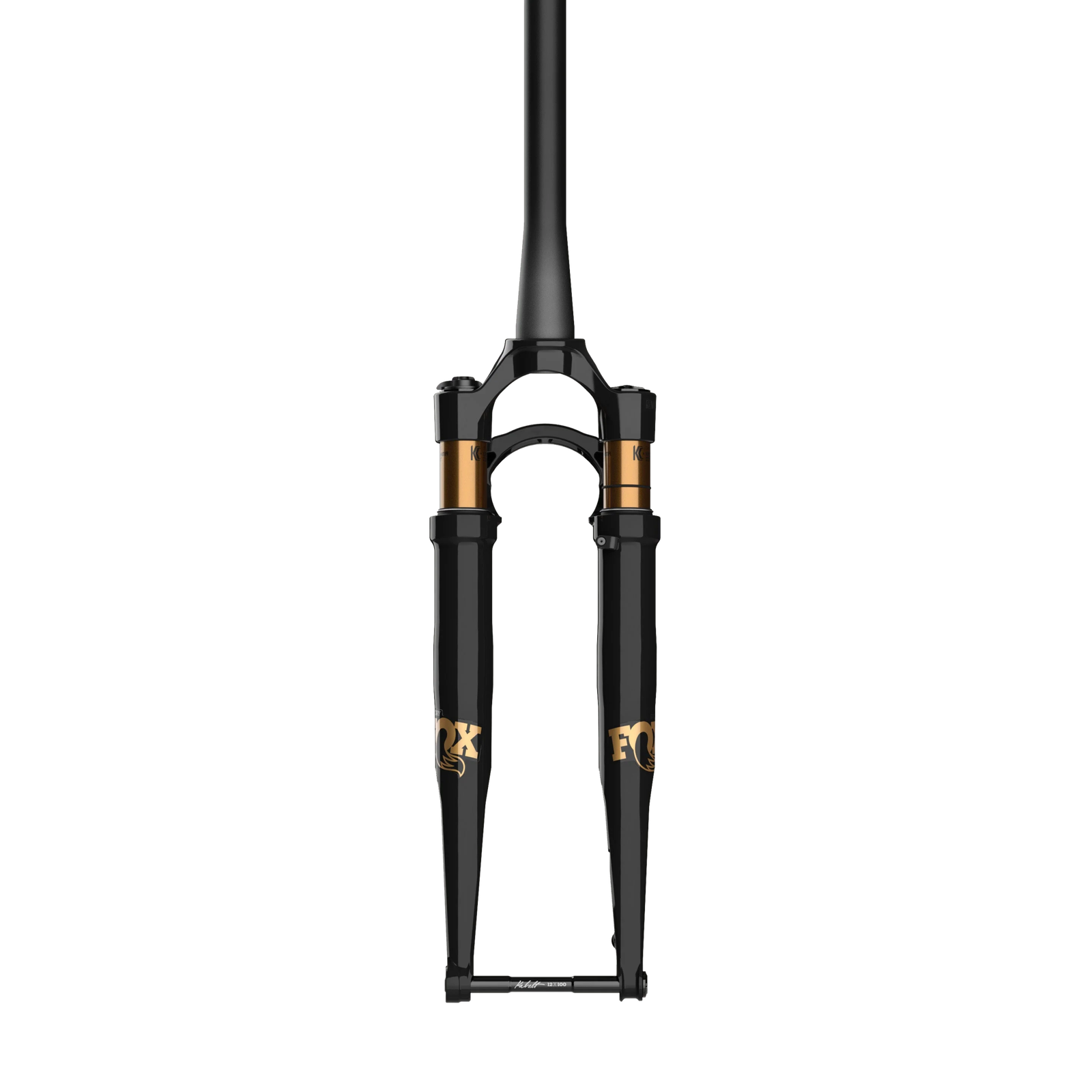

The lightest suspension fork FOX has ever built, the all-new 32 Taper-Cast Gravel Fork has arrived. It’s time to ditch the flex stem and undamped leaf springs; suspending the bike greatly improves rider experience, increases control, takes the edge off extended gravel rides and dramatically expands the terrain you can cover.
FOX 32 FACTORY TAPER-CAST SPECS
Upper Tube Finish: Kashima Coat
Rotor Size: 160 direct Flat Mount, up to 180 compatible
Fender Mount: Included full fender mount hardware
Air Spring: FLOAT EVOL
Steerer: 1.5 Taper
Starting Weight: 1226g
Developed in conjunction with emergent gravel bike designs, the 32 Taper-Cast features a sleek drop crown profile and new knob shapes that drastically improve downtube clearance, for fitment on all frame sizes and styles. A sleek, reverse arch design further improves fitment, decreases frontal area for better aerodynamics and provides stiffness through the arch matrix design.
The lightest fork FOX has ever designed and fabricated, the incredible 1226g weight retains functionality such as integrated fender mounts, 160mm and 180mm flat mount compatibility. The fork also features our lightweight Kabolt thru axle, and a longer steerer to allow for greater fitment options on gravel frames.
Equipped with FOX’s proven FIT4 or GRIP damper options, this lightweight package retains all the tunability of its mountain lineage, including adjustable travel options up to 50mm. The lightweight, short-travel optimized air spring requires fewer, if any, volume spacers and the design employs our lower leg air/oil bypass channels.
