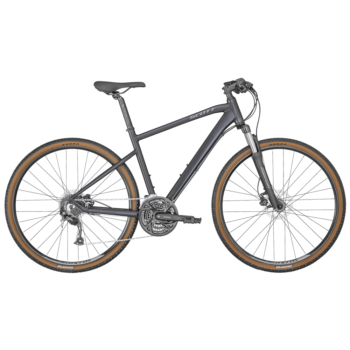

The SCOTT SUB Cross 40 emphasizes comfort and convenience for touring and transportation. The SUB Cross is set up perfectly for your excursions.
FRAME
Sub Cross Alloy 6061
Custom butted tubing
Sub Cross Men/Lady Rigid geometry
SCOTT urban kit ready
Â
FORK
Zoom 187 D / 63mm travel
Â
REAR DERAILLEUR
Shimano Altus RD-M2000 / 27 Speed
Â
FRONT DERAILLEUR
Shimano FD-M370 / 34.9mm
Â
SHIFTERS
Shimano SL-M2010-9 / R-fire plus / w/gear indicator
Â
CRANKSET
Shimano FC-M371-L / 48x36x26 / w/CG
Â
BB-SET
Feimin FP-B908N / Cartridge Type
Â
CHAIN
KMC X9
Â
CASSETTE
Shimano CS-HG200-9
11-32 T
11-32 T
Â
BRAKES
Tektro HDM275 Hydr. Disc
Â
ROTOR
Tektro / 6 bolts / F&R 160mm
Â
HANDLEBAR
Syncros 3.0 / 31.8 / Men: Tbar/660mm/9° bend / Lady: 660mm/15° bend
Â
STEM
Syncros 3.0 / 7° / Black
SEATPOST
Syncros 3.0 / 31.6mm / 350mm / Black
Â
SEAT
Syncros UC3.0 / UC3.0W
Â
HEADSET
Syncros OE Press Fit / 1 1/8″
OD 50mm / ID 44mm
OD 50mm / ID 44mm
Â
HUB (FRONT)
Formula DC-19 FQR Disc
Â
HUB (REAR)
Formula DC-25 RQR Disc
Â
SPOKES
14g / stainless / black
Â
RIMS
Syncros X-20 Disc / 32H / black
Â
FRONT TIRE
Kenda Booster / 700x45C / 30 TPI
Â
REAR TIRE
Kenda Booster / 700x45C / 30 TPI
Â
PEDALS
Feimin FP-873-ZU
Â
APPROX WEIGHTS IN KG
13.64
Â
APPROX WEIGHTS IN LBS
30.07
Â
MAX. SYSTEM WEIGHT
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Please note that bike specifications are subject to change without prior notice.
