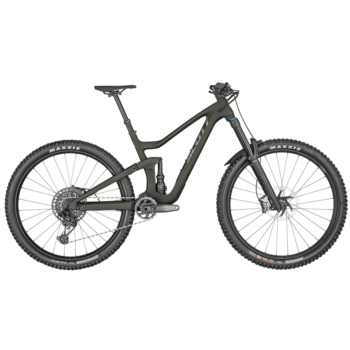

The Ransom. This Enduro Mountain Bike features 170mm of trail munchin’, climb crushing, stage winning all day pinning mountain biking excellence. The 910 comes equipped with a FOX 38 fork, our TracLoc Suspension System, a SRAM Eagle groupset and Syncros components to help you get away with murder, regardless of your ability level.
FRAME
Ransom Carbon / IMP Technology / HMX Main Frame
BB92 / Alloy SL 6011 swingarm
VLK Virtual 4 Link kinematic
27.5″ (2.6 & 2.8) and 29″ (2.4 & 2.6) tire compatible with Geo-BB adj.
SW dropouts for Boost 12x148mm
TBC Trunnion box construction
BB92 / Alloy SL 6011 swingarm
VLK Virtual 4 Link kinematic
27.5″ (2.6 & 2.8) and 29″ (2.4 & 2.6) tire compatible with Geo-BB adj.
SW dropouts for Boost 12x148mm
TBC Trunnion box construction
FORK
FOX 38 Float Performance Elite Grip 2 Air
HSC – LSC – HSR- LSR adjustable / Kabolt 15x110mm axle
44mm offset / tapered steerer
170mm travel
HSC – LSC – HSR- LSR adjustable / Kabolt 15x110mm axle
44mm offset / tapered steerer
170mm travel
REAR SHOCK
FOX NUDE TR EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
custom Ramp Adjust with linear and progressive setting
DPS / Reb. Adj.
Travel 170-120-Lockout / 205X65mm
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
custom Ramp Adjust with linear and progressive setting
DPS / Reb. Adj.
Travel 170-120-Lockout / 205X65mm
REMOTE SYSTEM
TracLoc Technology
Rear Suspension & Dropper Remote
3 Rear Suspension modes
Rear Suspension & Dropper Remote
3 Rear Suspension modes
REAR DERAILLEUR
SRAM GX Eagle 12 Speed
SHIFTERS
SRAM GX Eagle Trigger
CRANKSET
SRAM GX Eagle DUB Boost
32T
32T
CHAINGUIDE
SCOTT Chainguide
BB-SET
SRAM DUB PF integrated / shell 41x92mm
CHAIN
SRAM CN GX Eagle
CASSETTE
SRAM GX / XG1275 / 10-52 T
BRAKES
Shimano XT M8120 4 Piston Disc
ROTOR
Shimano SM-RT76 / 6 Bolt / 203/F and 180/R
HANDLEBAR
Syncros Hixon 1.5 Rise / Alloy 20140D.B.
20mm rise / 8° / 780mm
Syncros Pro lock-on grips
20mm rise / 8° / 780mm
Syncros Pro lock-on grips
STEM
Syncros XM1.5 / Alloy 6061
integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8″
integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8″
SEATPOST
FOX Transfer Performance Elite Dropper Post
31.6mm / S 125mm / M 150mm / L & XL 175mm
31.6mm / S 125mm / M 150mm / L & XL 175mm
SEAT
Syncros Kaslo 1.5
Titanium Rails
Titanium Rails
HEADSET
Syncros Pro Press Fit E2 / Tapered 1.5″-1 1/8″
OD 50/62mm / ID 44/56mm
OD 50/62mm / ID 44/56mm
WHEELSET
Syncros Revelstoke 2.0 6 Bolt
F: 15x110mm, R: 12x148mm Boost
30mm Tubeless ready rim 28H / XD Driver
Syncros Axle w/Removable Lever with Tool
F: 15x110mm, R: 12x148mm Boost
30mm Tubeless ready rim 28H / XD Driver
Syncros Axle w/Removable Lever with Tool
FRONT TIRE
Maxxis Assegai / 2.5″ / 60TPI Foldable / EXO+ / TR / 3C Maxx Gripp
REAR TIRE
Maxxis Dissector / 2.4″ / 120TPI Foldable / EXO+/ TR / 3C Maxx Terra
EXTRAS
Syncros Trail Fender 2 36/38
APPROX WEIGHTS IN KG
14.4 (with tubes)
APPROX WEIGHTS IN LBS
31.75 (with tubes)
MAX. SYSTEM WEIGHT
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Please note that bike specifications are subject to change without prior notice.
