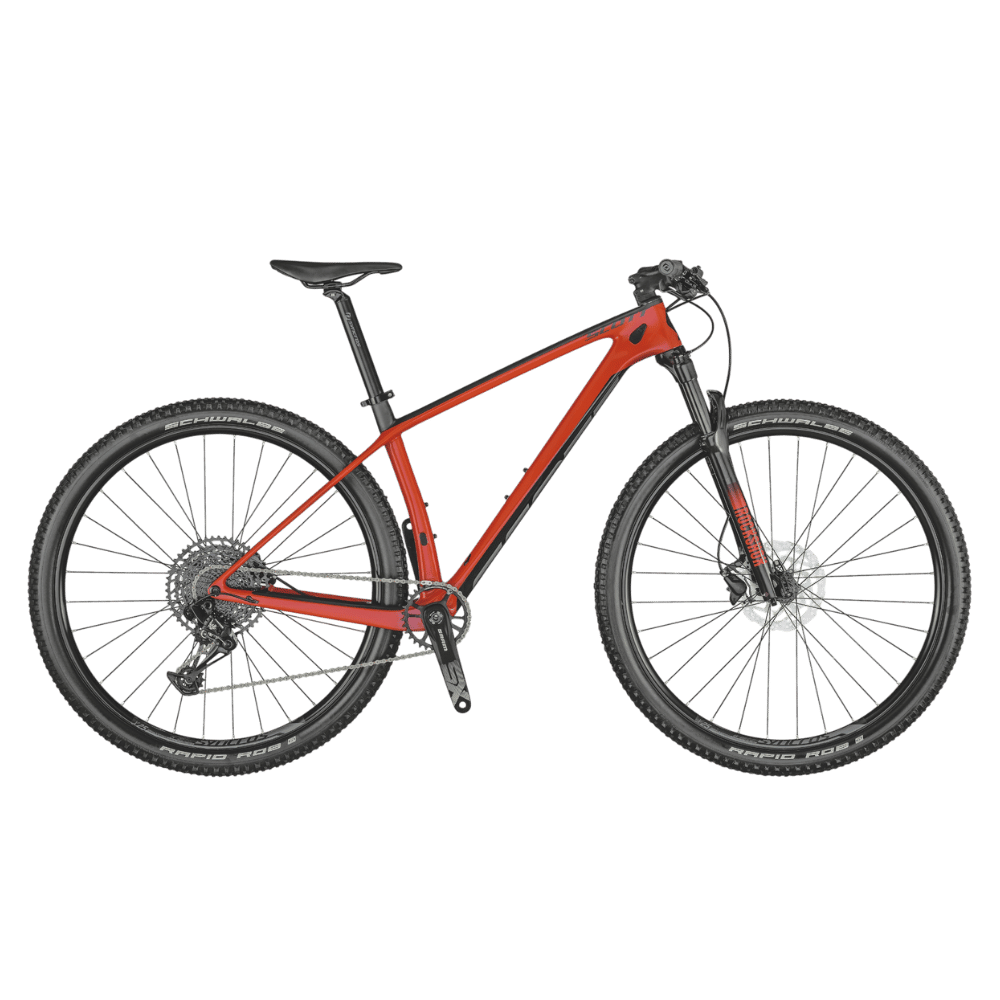

The SCOTT Scale 940 features an ultralight Carbon Frame. RockShox suspension, a SRAM Eagle drivetrain and Syncros components create a durable and affordable hardtail designed for world-class speed.
FRAME
Scale 3 Carbon / IMP Technology / HMF, BB92 / SW DM
dropouts for Boost 12x148mm, SDS2 advanced Shock &
Standing Damping System, ICCR Cable routing
dropouts for Boost 12x148mm, SDS2 advanced Shock &
Standing Damping System, ICCR Cable routing
FORK
RockShox Judy Silver TK, Solo Air spring, lockout via Scott RideLoc remote lever, rebound adjust, 42mm offset
REMOTE SYSTEM
SCOTT RideLoc / below bar remote / integ. Grip clamp
REAR DERAILLEUR
SRAM NX Eagle, 12-speed
SHIFTERS
SRAM SX Eagle, 12-speed, Trigger
CRANKSET
SRAM SX Eagle DUB
BB-SET
SRAM DUB, 92mm PressFit
CHAIN
SRAM SX Eagle, 12-speed
CASSETTE
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
BRAKES
Shimano MT200, 2-piston, Shimano RT10 CENTER LOCK rotors (180mm front, 160mm rear)
ROTOR
Shimano RT10 CENTER LOCK rotors (180mm front, 160mm rear)
HANDLEBAR
Syncros, 6061 alloy, 9° sweep, 740mm width, 31.8mm clamp diameter
STEM
Syncros FL2.0, 6061 alloy, 6° rise, 31.8mm bar clamp
Length: 60mm (SM), 70mm (MD), 80mm (LG), 90mm (XL)
Length: 60mm (SM), 70mm (MD), 80mm (LG), 90mm (XL)
SEATPOST
Syncros, 400mm length
SEAT
Syncros Belcarra Regular 2.5
HEADSET
Syncros Pro Drop-in
HUB (FRONT)
Formula CL-811 / 15x110mm
HUB (REAR)
Formula CL-3248 / Boost 12x148mm
SPOKES
Stainless Black 15G / 1.8mm
RIMS
Syncros X-25 / 32H / 25mm
FRONT TIRE
Schwalbe Rapid Rob 29×2.25” / Active line
REAR TIRE
Schwalbe Rapid Rob 29×2.25” / Active line
APPROX WEIGHT
27 lb 5.4 oz (12,400 g)
Please note that bike specifications are subject to change without prior notice.

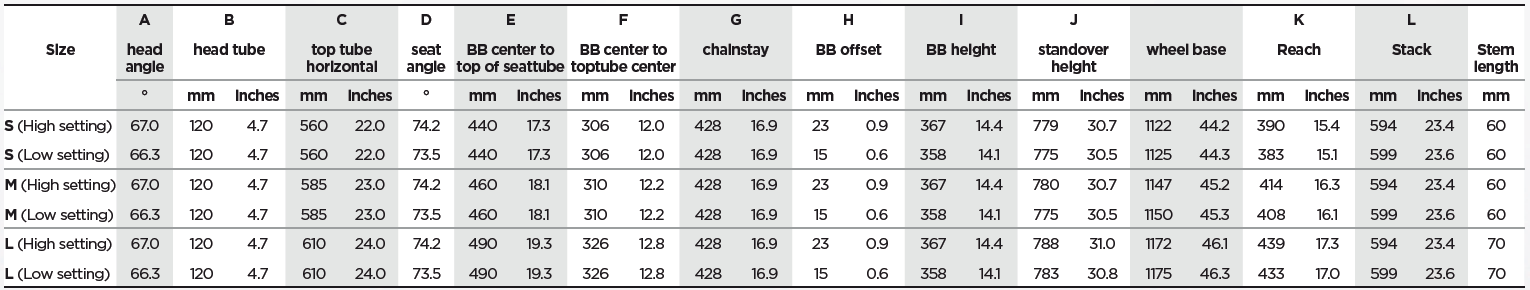

Geometry Chart
Size Chart
Geometry Chart
Size Chart
Geometry Chart
Size Chart
