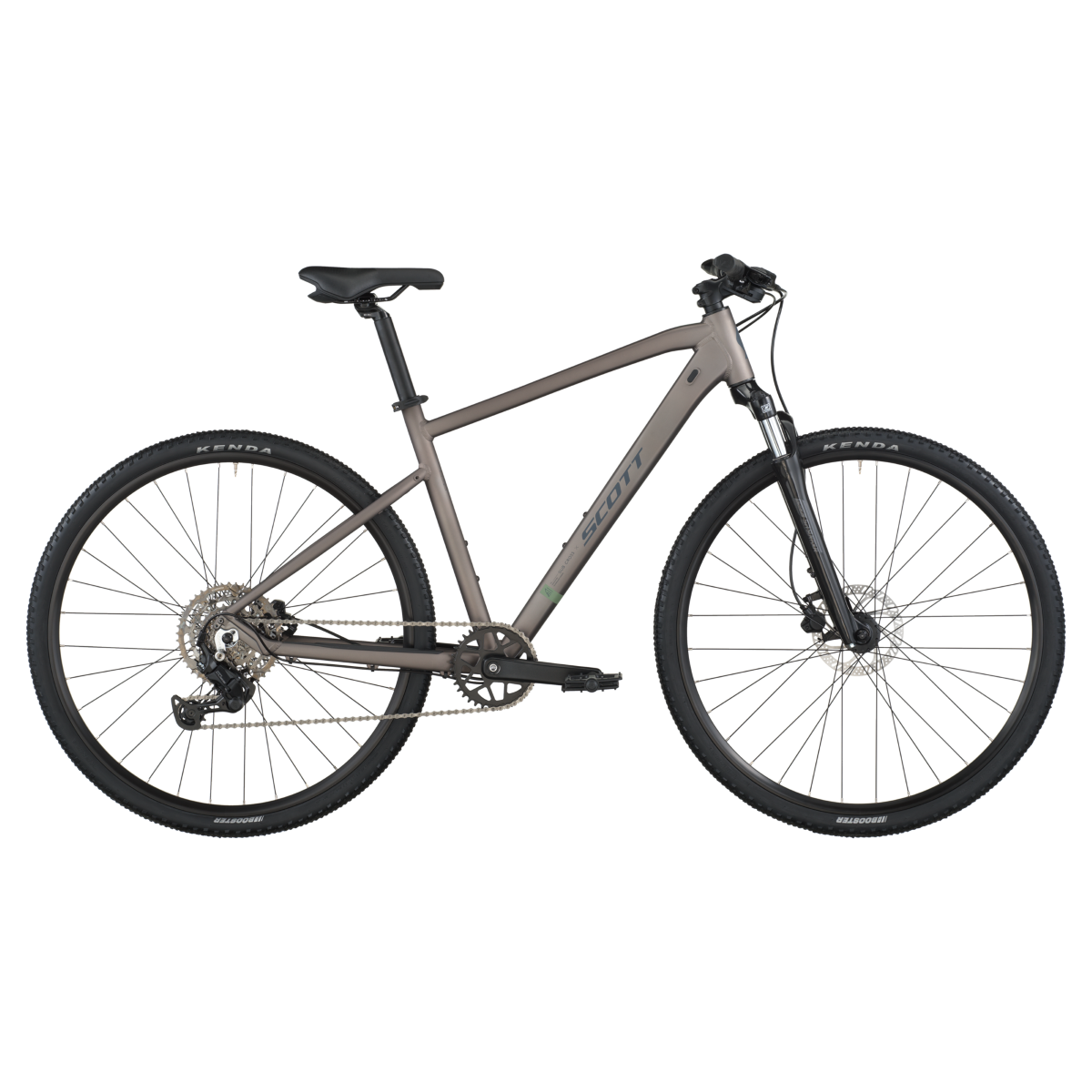

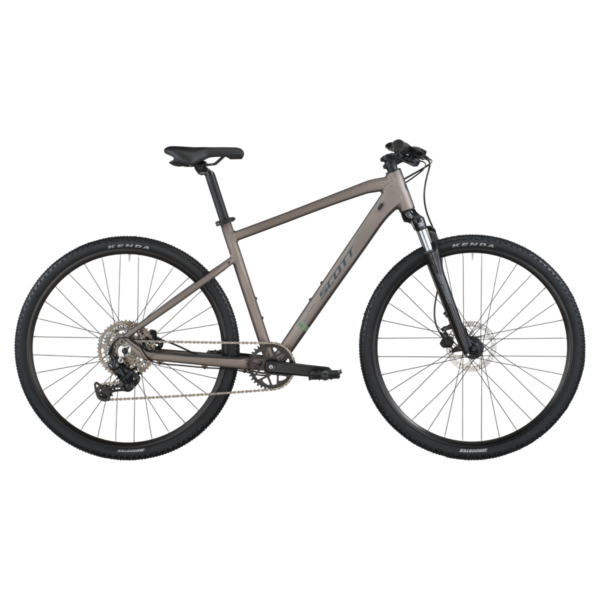

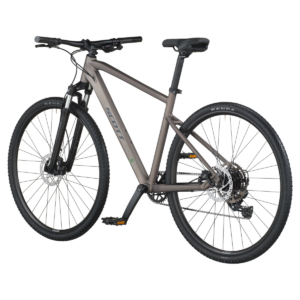

Sub Cross 30 is your go-to ride for getting around town with efficiency and in style at an approachable price point. Designed around an alloy frame that prioritizes comfort, stability, and convenience, it’s a dream ride for those looking to tour around or roll a low-hassle commute into the office.
It’s light and nimble in traffic, and planted in the rougher sections on the route with a 63mm suspension fork and wide all-condition Kenda Booster Tires. Shimano’s 9-speed drivetrain gives range to explore and hydraulic brakes give the confidence to handle the unexpected on the ride.
FRAME
Sub Cross, Alloy 6061, custom butted tubing, internal routing, fender and rack compatible
TRAVEL
Front travel: 63 mm

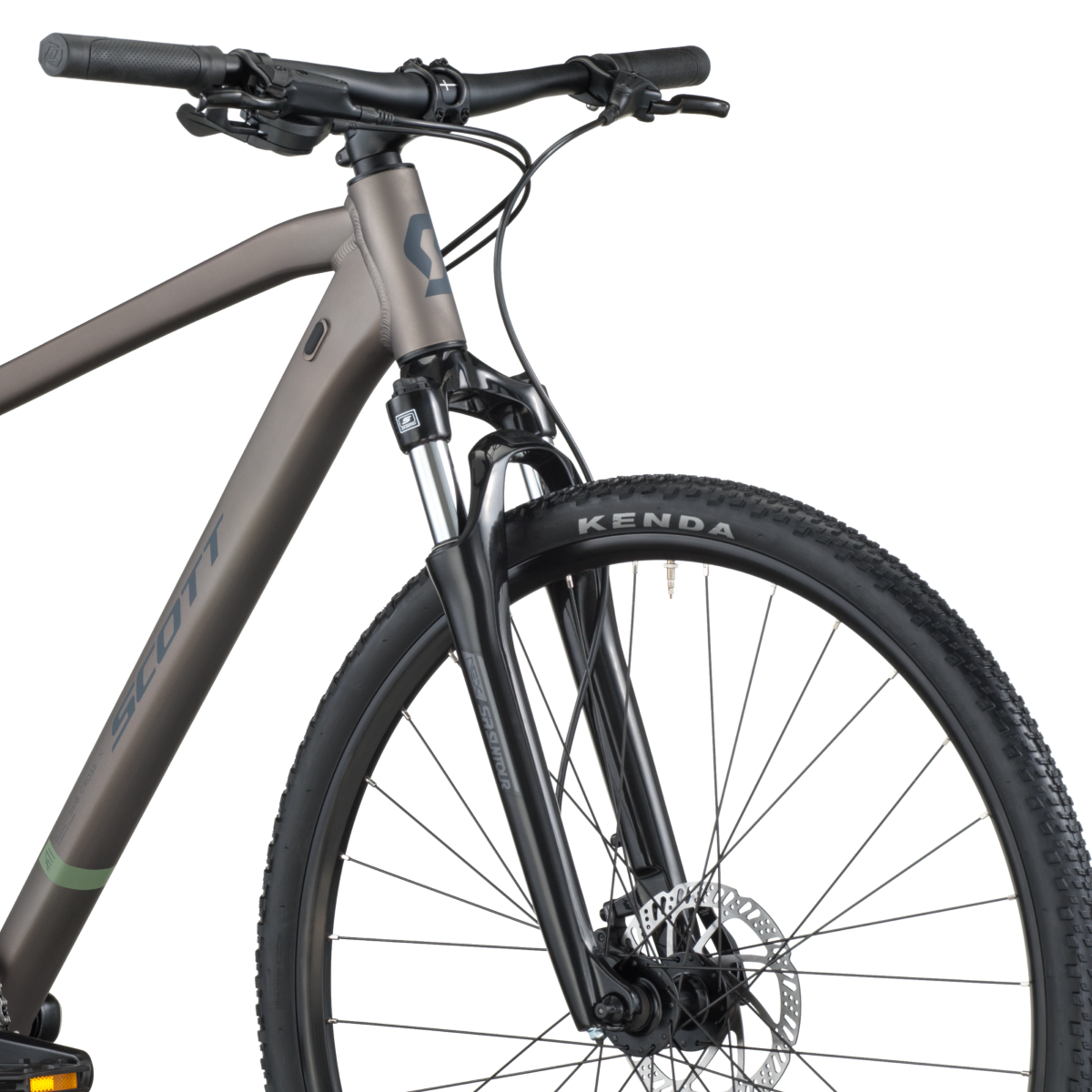

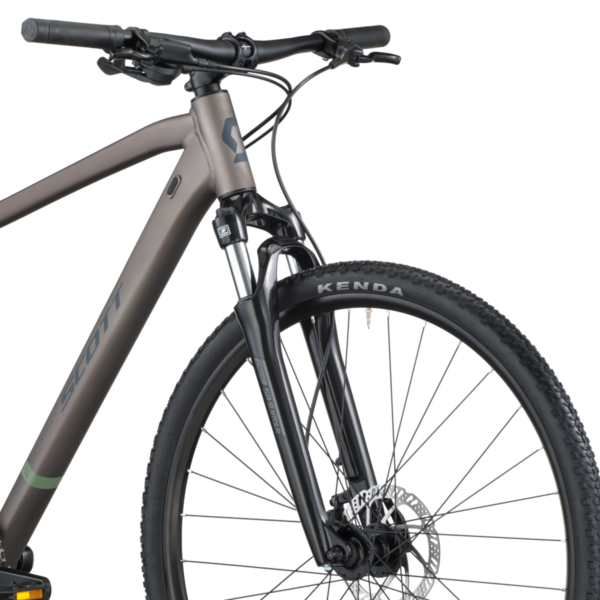

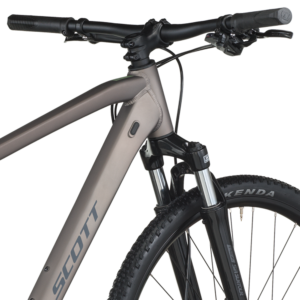

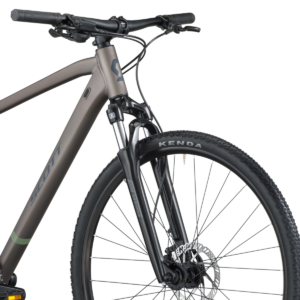

FORK
SR Suntour NEX

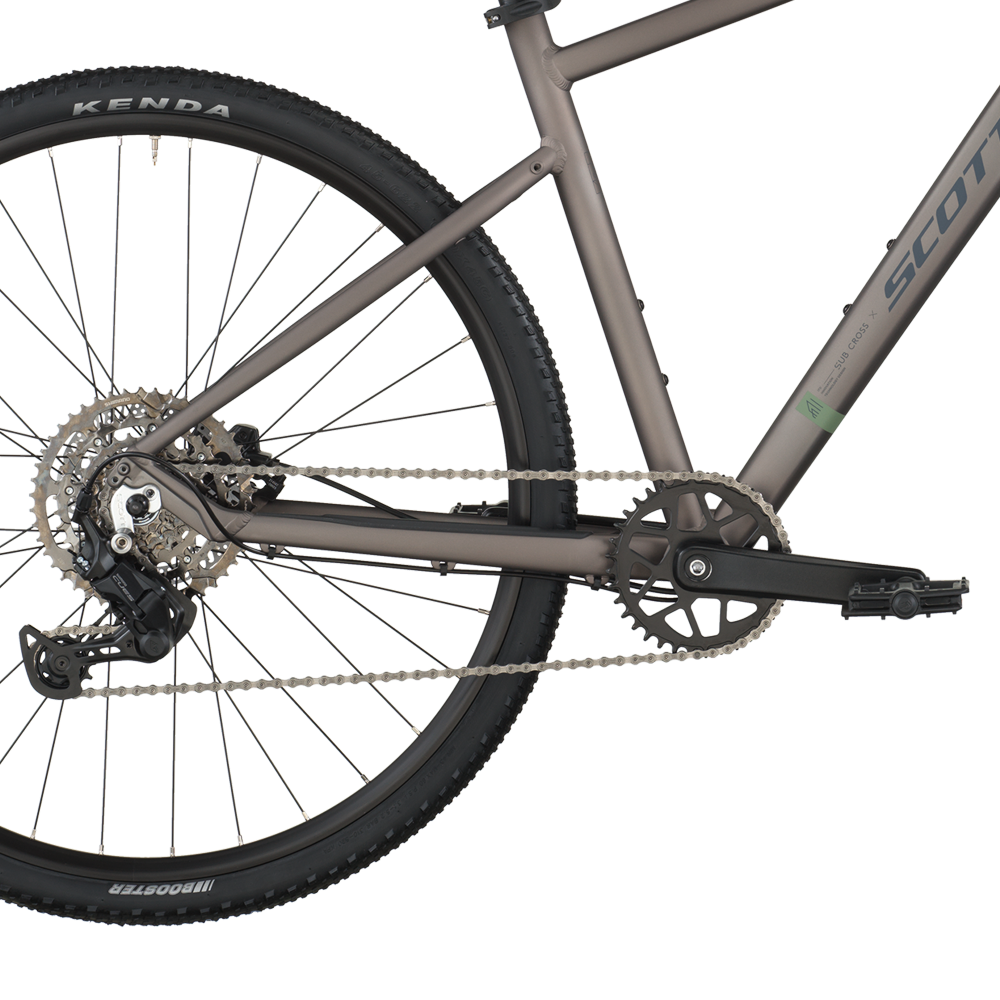

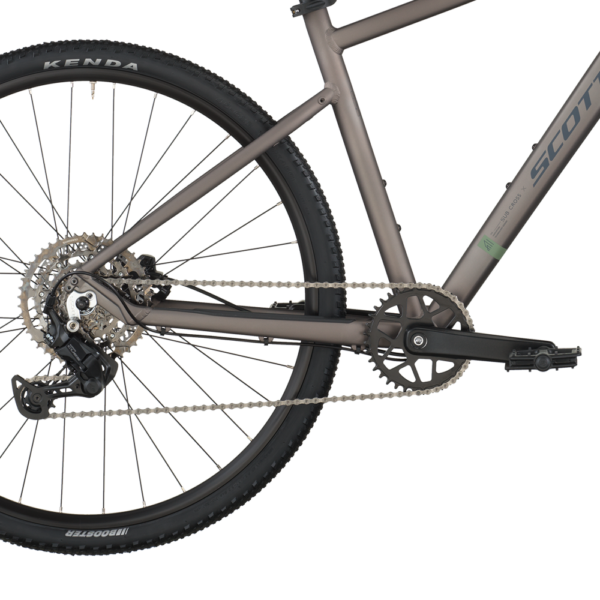

REAR DERAILLEUR
Shimano Cues RD-U4000 9-Speed
SHIFTERS
Shimano Cues SL-U4000 with Display

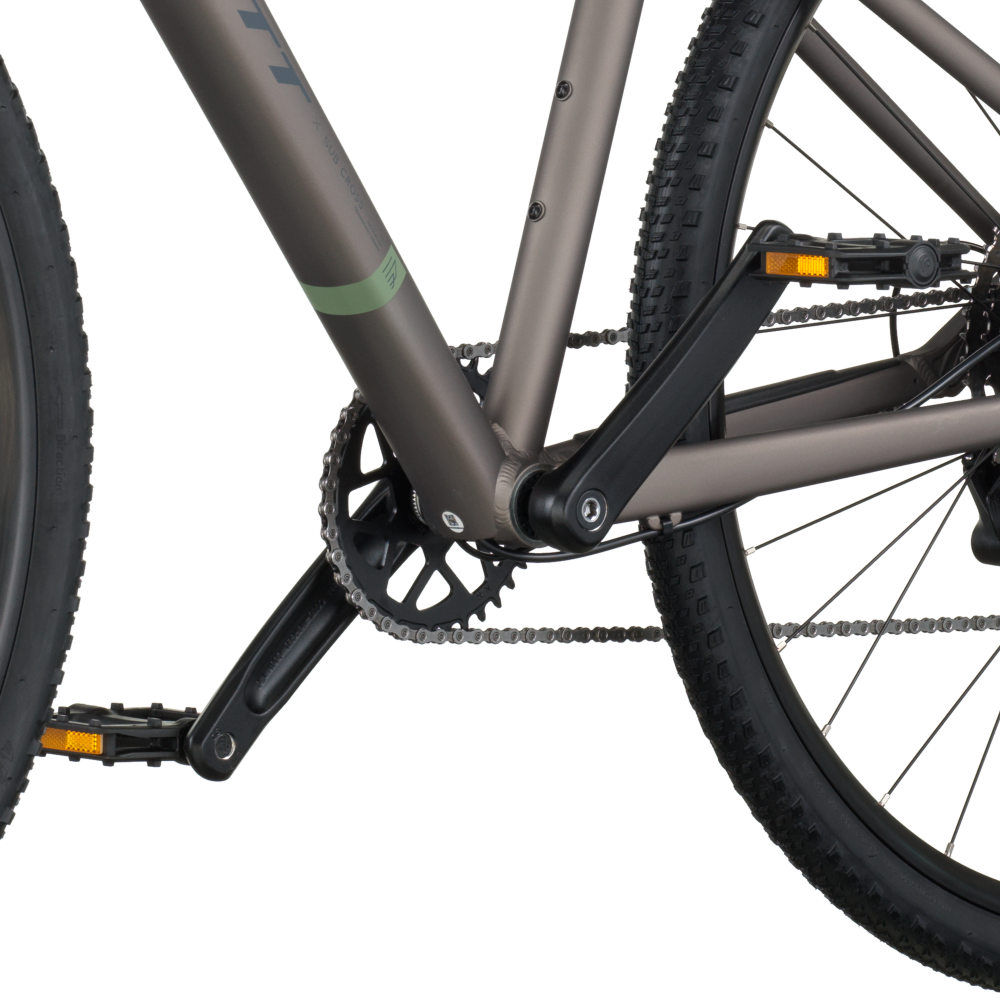

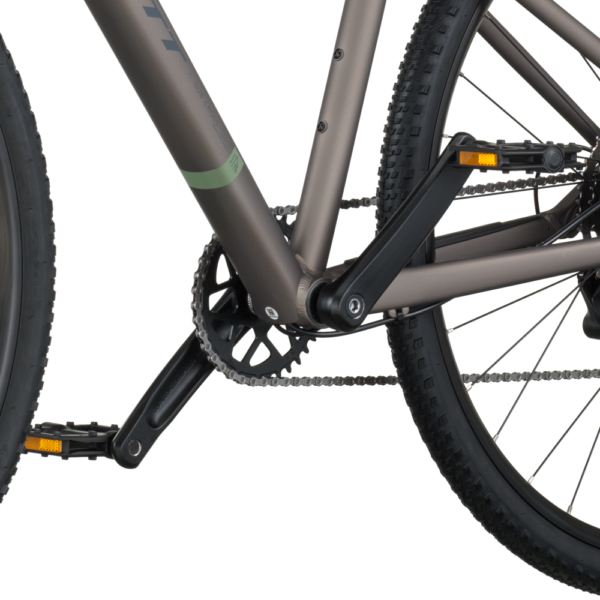

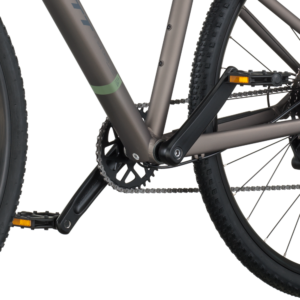

CRANKSET
Prowheel C10Y-NW, 36T Steel, Chainguard
BB-SET
Feimin FP.B908N, BB73, square taper
CHAIN
Shimano CN-LG500
CASSETTE
Shimano Cues CS-LG300, 9-Speed 11-46T
BRAKES
Tektro TKD 176, 2-Piston, 160mm Rotor, Hydraulic
GRIPS
Syncros Comfort Lock On grips

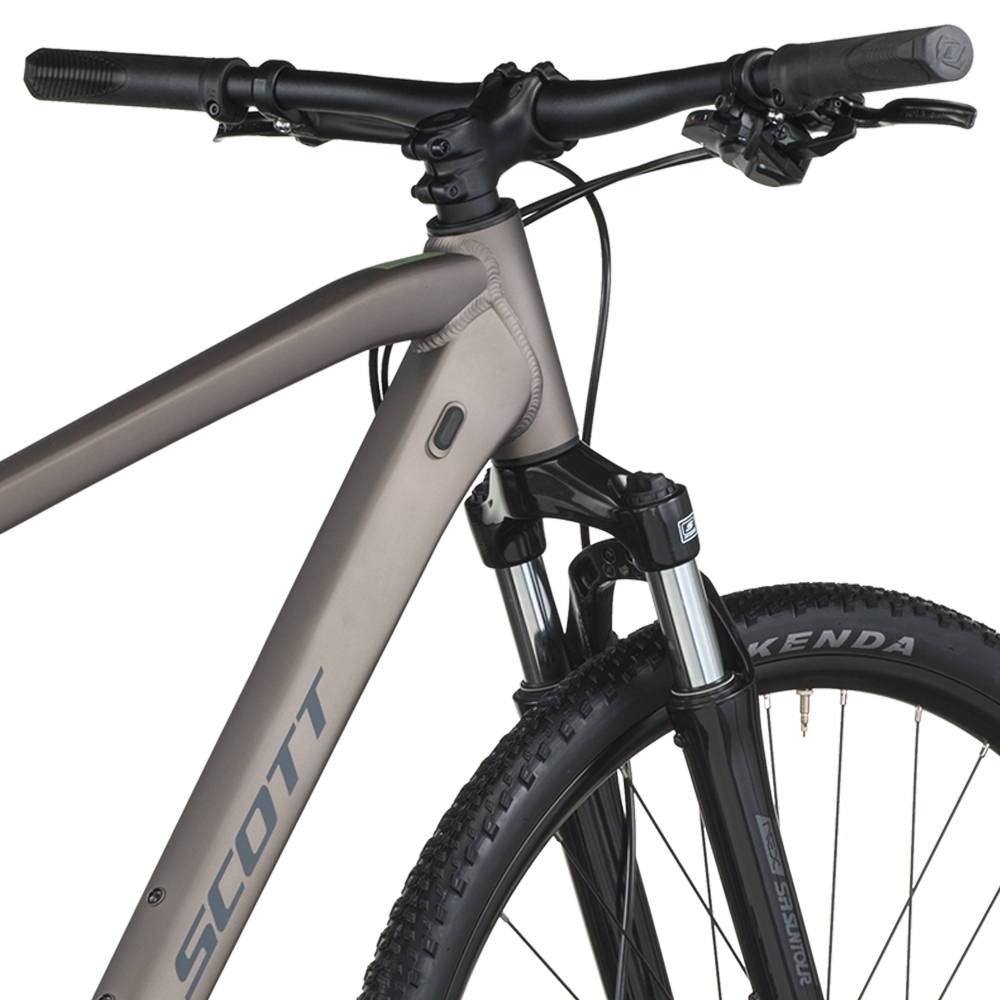

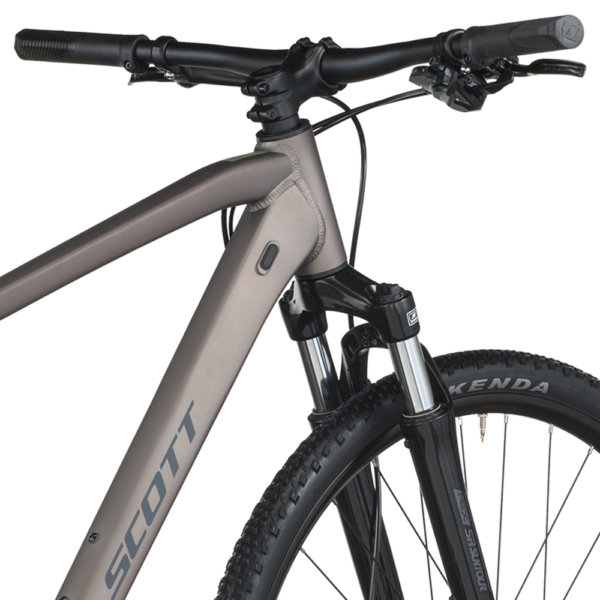

HANDLEBAR
HL MTB-AL-312BT, Black, 12mm rise
H’STEM
HL TDS-C342-8FOV, 10°, 31.8, Black

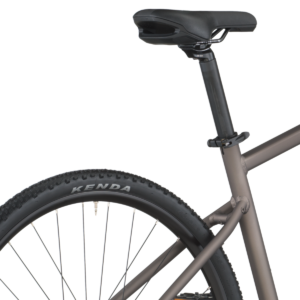

SEATPOST
HL SP C207, 31.6mm, Black

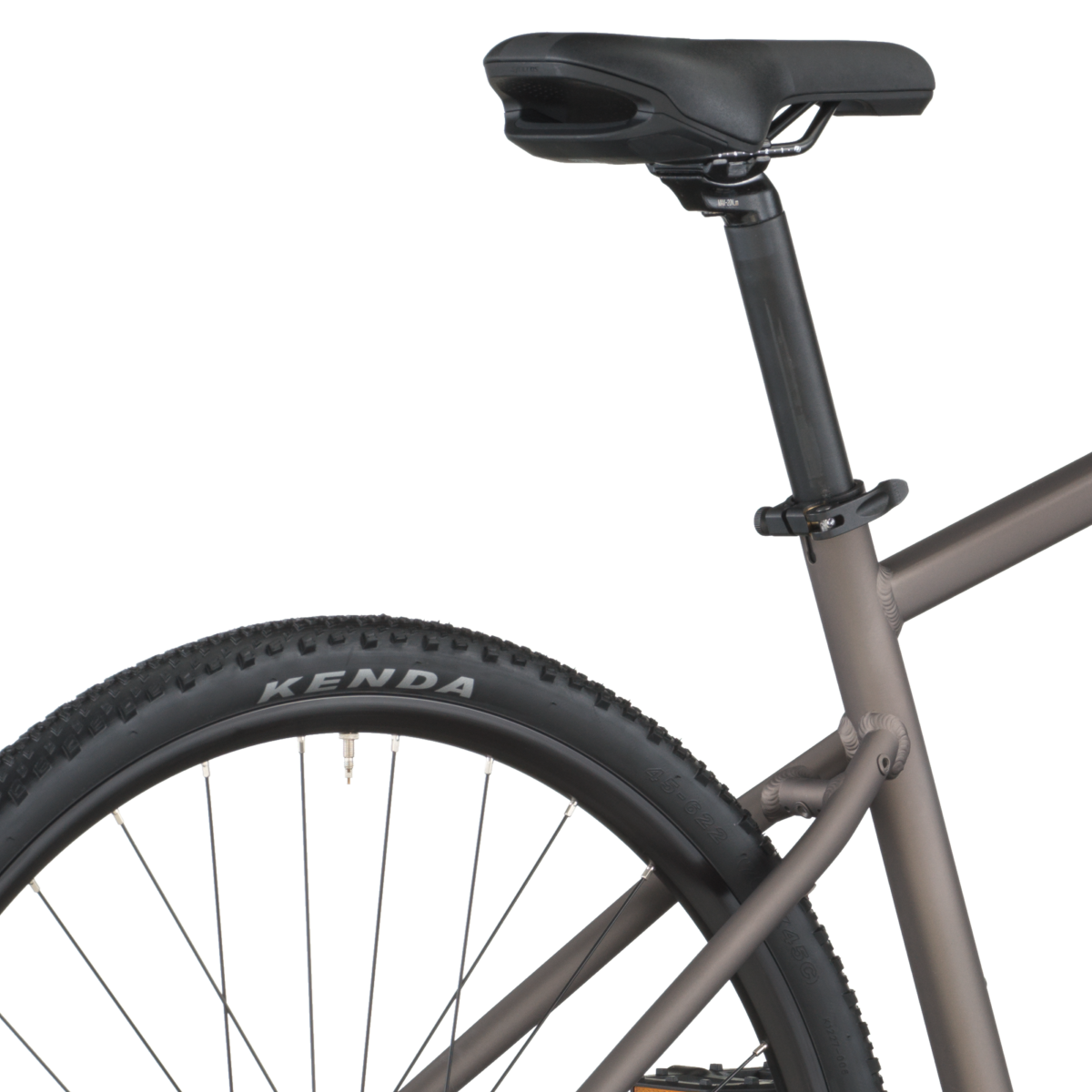

SEAT
DDK Vacuum Saddle
HEADSET
Headset ZS44-50mm, 1 1/8″
HUB (FRONT)
Formula DC-19 FQR Disc, 5x100mm
HUB (REAR)
Formula DC-25 8s RQR Disc, 5x135mm
SPOKES
Stainless Black
FRONT RIM
Alex Rims X20 Disc 29” 32H
REAR RIM
Alex Rims X20 Disc 29” 32H
FRONT TIRE
Kenda Piedmont 700 x 50
REAR TIRE
Kenda Piedmont 700 x 50
PEDALS
Feimin FP-803, w/Reflector
APPROX WEIGHTS IN KG
13.48 without pedals
APPROX WEIGHTS IN LBS
29.72 without pedals
MAX. SYSTEM WEIGHT
130kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Please note that bike specifications are subject to change without prior notice.

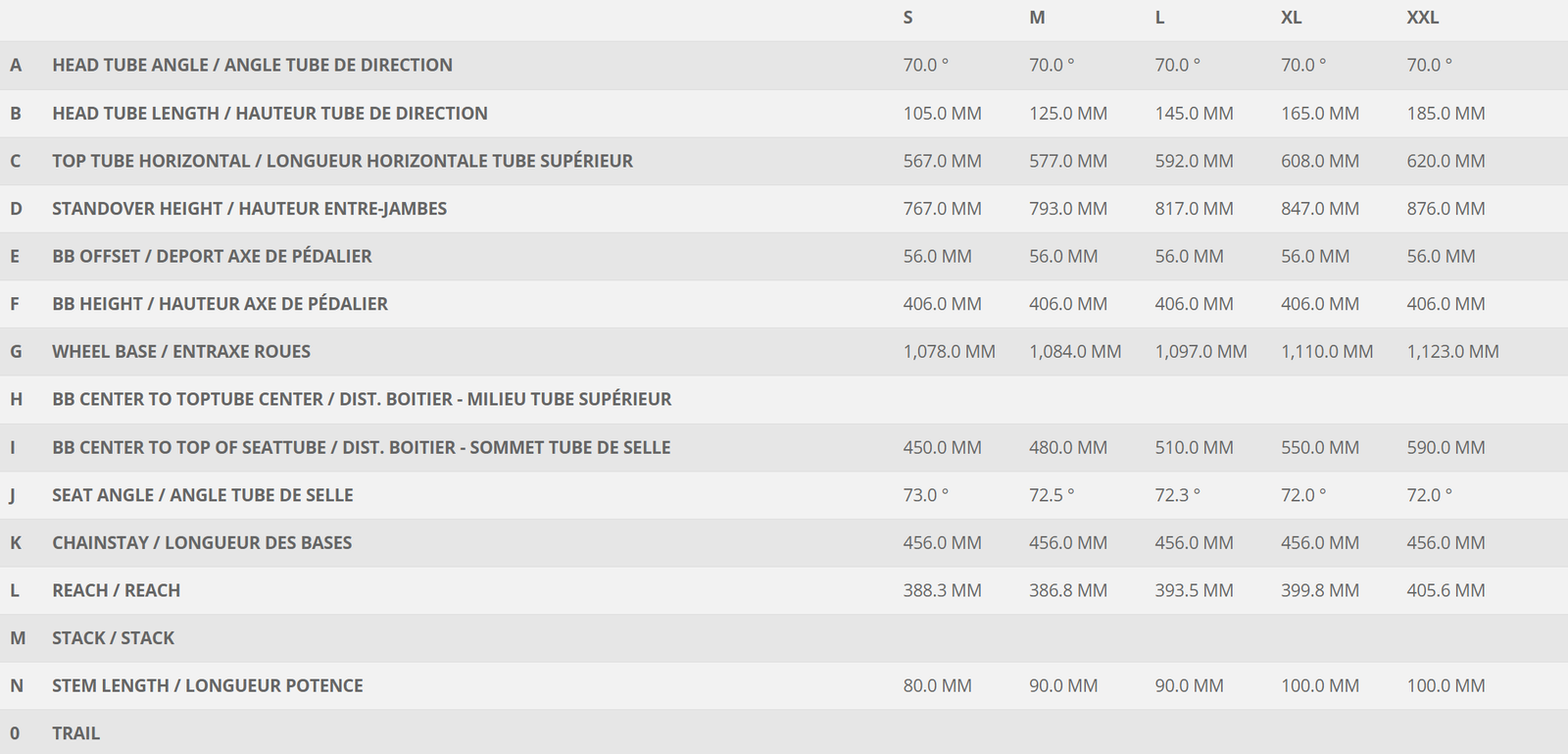

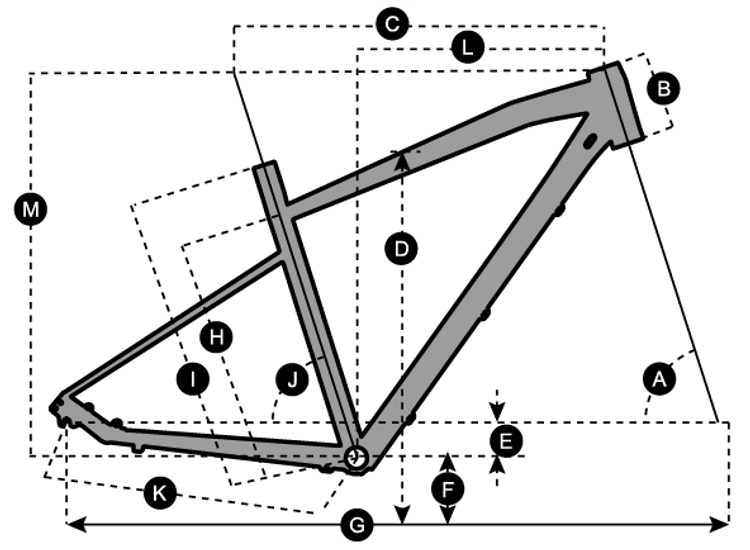

Geometry Chart
