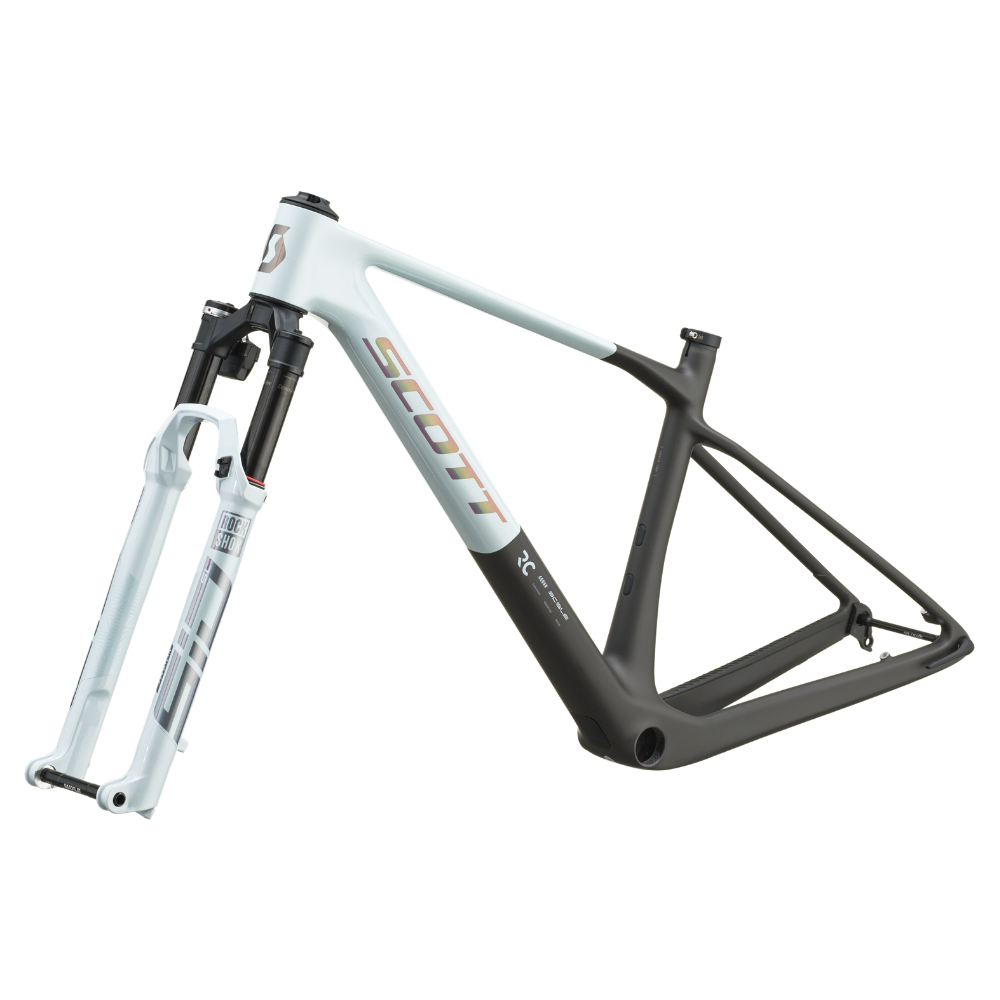

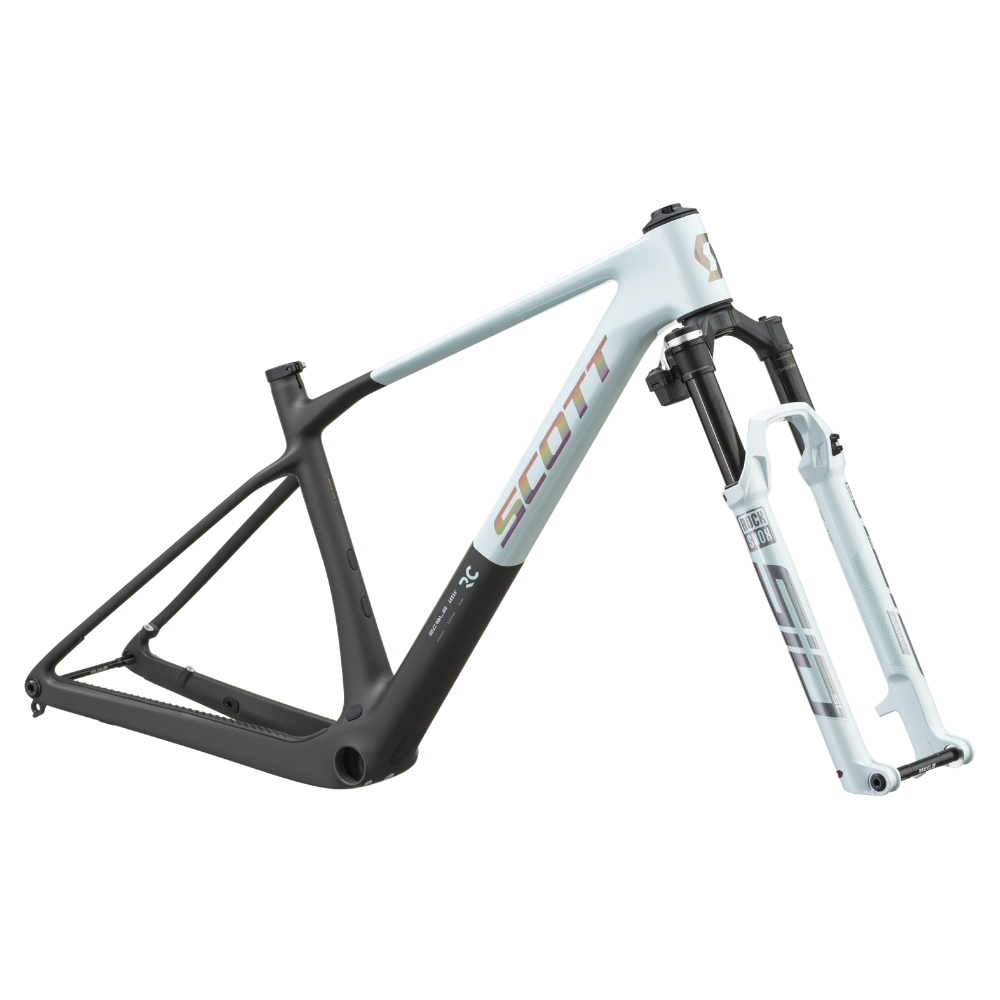

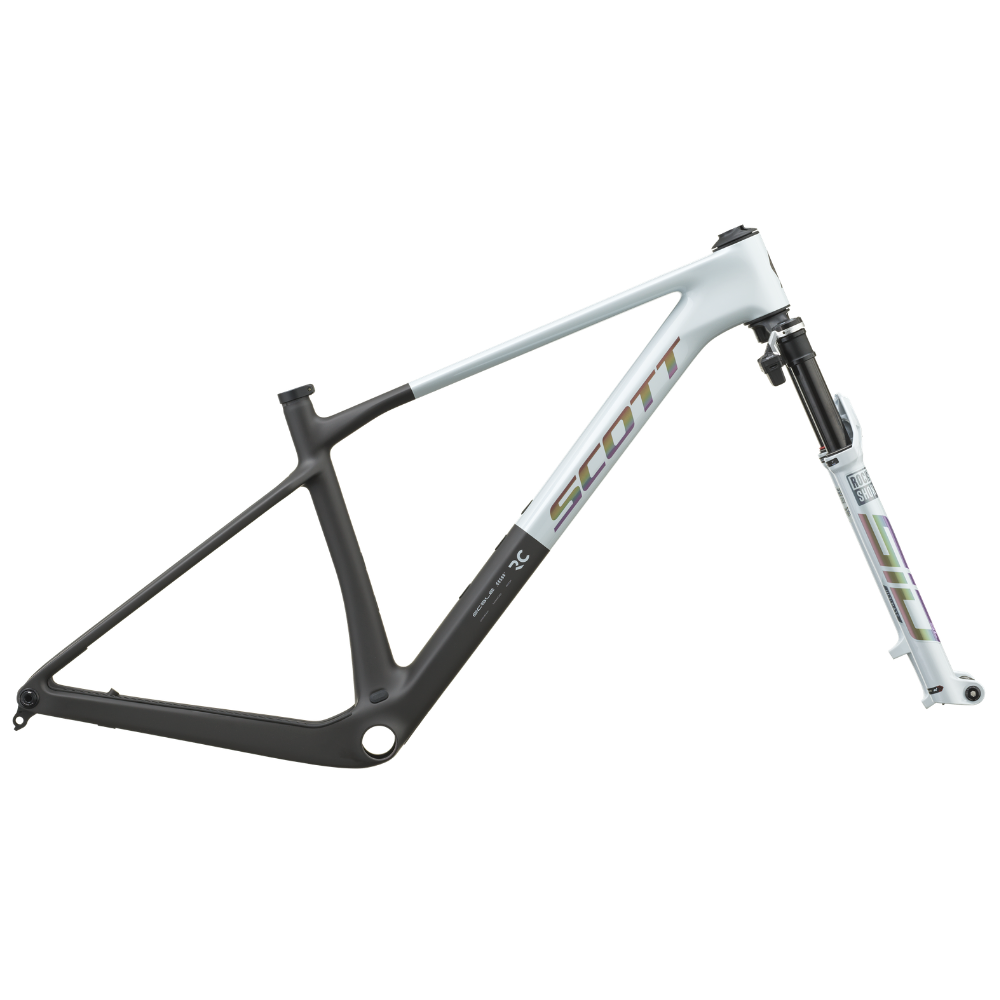

The Scale RC World Cup is the perfect blend of stiffness, light weight, and 30 years of carbon expertise. These characteristics, encompassed in an uncompromising frame design decisively accelerate the Scale away from the pack with every pedal stroke. Whenever you find yourself up against the clock, tip the scales in your favor. Please note that bike specifications are subject to change without prior notice.
Scale RC HMX carbon, adjustable head angle, Syncros cable integration system, advanced shock & standing damping system, BB92, UDH interface, 12x148mm with 55mm chainline
RockShox SID SL Ultimate Flight Attendant, electronically controlled suspension, FA Race Day damper 3P, 15x110mm Maxle Stealth, tapered steerer, reb. adj., lockout
Please note that bike specifications are subject to change without prior notice.
| Frame size | S | M | L | XL |
|---|---|---|---|---|
A | ||||
B | ||||
C | ||||
D | ||||
E | ||||
F | ||||
G | ||||
I | ||||
J | ||||
K | ||||
L | ||||
M | ||||
N | ||||
P | ||||
Q |

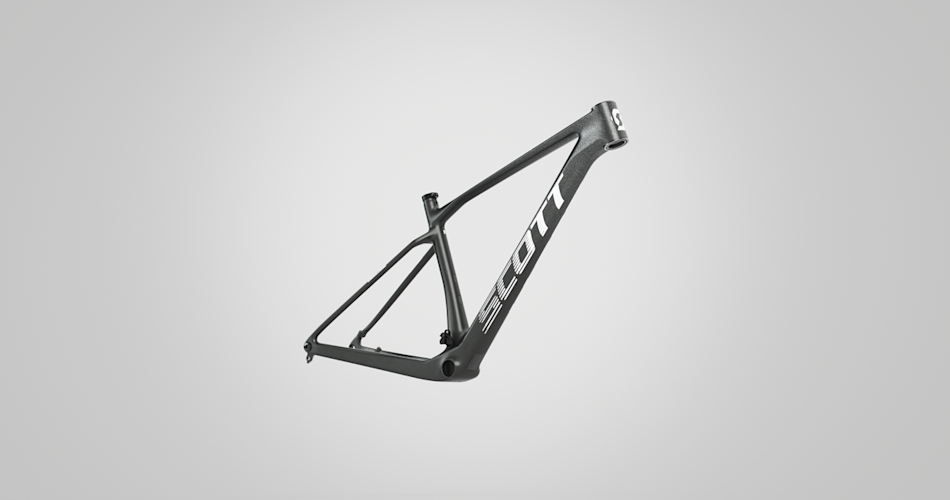

Monocoque Construction
The new Scale RC’s monocoque construction enables a production using only one mold for the main section of the bike, the front triangle. Applying our carbon expertise, the new Scale therefore consists of only 3 separate pieces molded together. This directly translates into an increased level of efficiency due to the reduced number of junctions required therefore decreasing weight while keeping the superior stiffness – something we’re always aiming for with hardtail race bikes. With the full frame constructed as a system, the monocoque design enables the frame to handle forces as a whole.

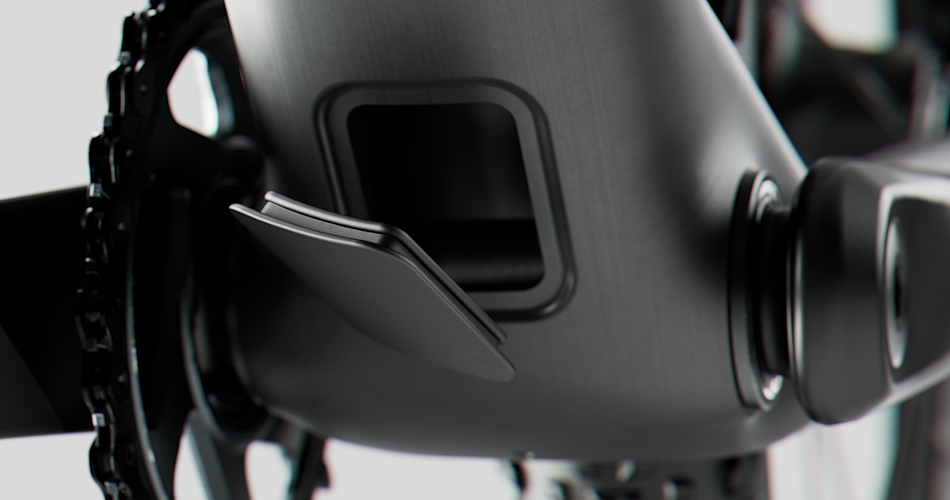

Service Door
A little service door, which is accessible through a downtube cover, allows easy access to the interior of the frame without the need to remove the Bottom Bracket. Frame maintenance is made easy with regards to cable routing.

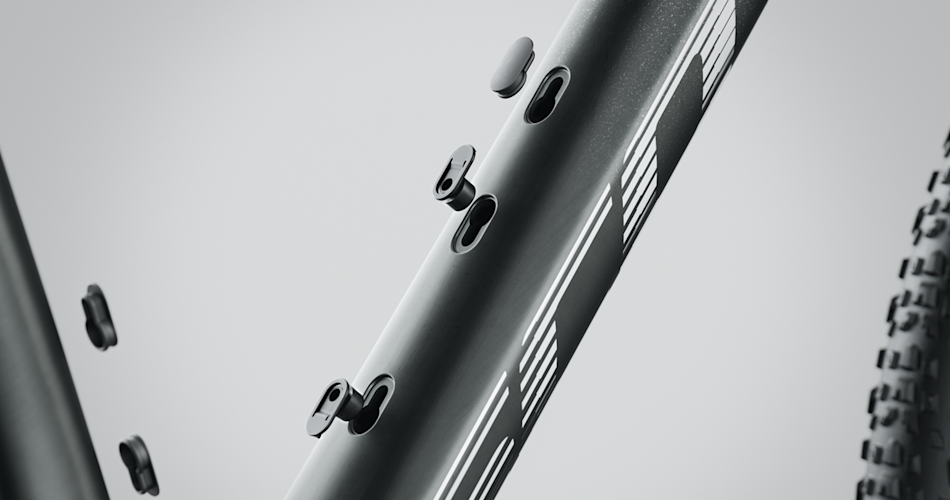

Polymer Inserts
With the all-new Scale RC we constantly reduced the amount of metal inserts wherever possible. Instead, lighter polymer versions were incorporated and can be found as the bottle cage inserts on the HMX-SL frames. These can be plugged completely, sitting flush on the frame due to a smart and flexible clipping mechanism. Being able to set up the plugs and mounts needed provides riders with maximum flexibility and further eliminates potential vulnerable points as these are easily replaceable in the event of a damaged thread. Plugs and inserts are easy to set up without the need for additional tools and further contribute to the overall clean design.

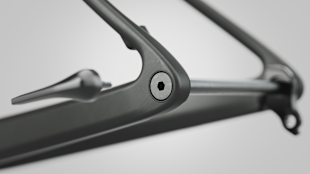

Hollow Dropout Construction
The dropout feature an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the head flush with the surface. This enables the lightest possible construction approach and a clean looking design from the outside. While being able to directly shave off 7.5g with the new dropout construction, the optimized design favors a narrower construction of the rear triangle area, which in turn enables a reduction of 20g in this area of the frame (HMX-SL).

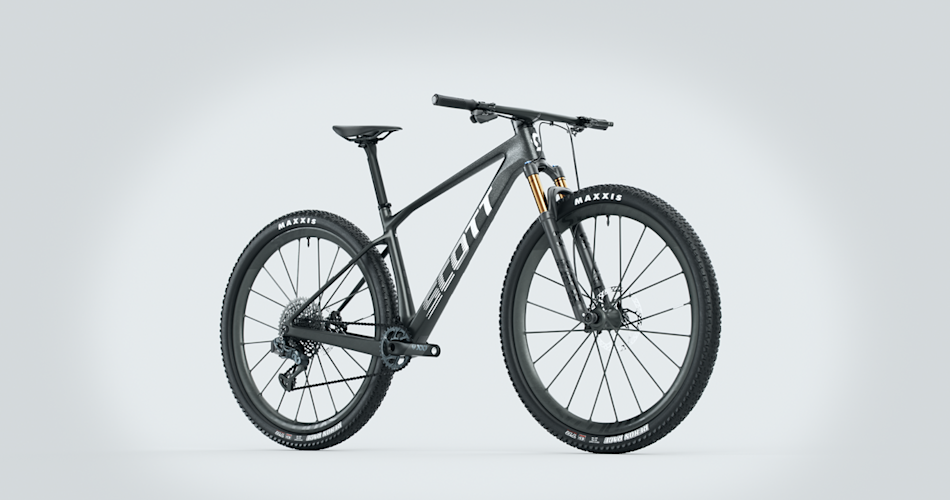

Design
The new Scale’s design was uncompromisingly subjected to our pursuit of perfection and drive for pure efficiency, strictly following the guiding principle of “Form follows Function”. In our search for the ultimate, yet most simple construction, we’ve centered the design around the essentials by balancing the bike’s DNA in order to create a whole new breed of XC bike. The result is a straightforward and clear design, which provides the all-new Scale with its distinctive character and aggressive look: a bike that proudly shows off its characteristics.

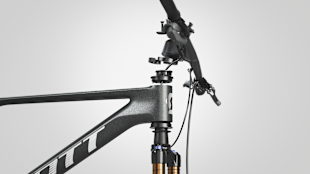

Adjustable Head Angle
With the new Scale RC, you can adjust the head angle by 0.6 degrees slacker or steeper. This can be done without cutting cables or bleeding brakes. All you must do is disassemble the bar, rotate the headset cups 180 degrees, and reassemble.
