Specifications
| Weight | 400 grams |
|---|---|
| Materials | Butted 3/2.5 titanium arms with CNC 6/4 titanium spindle, and hirth joint. Stainless Steel crank bolt |
| Preload Adjustment | Cane Creek CNC Machined 7075 T-6 Aluminum |

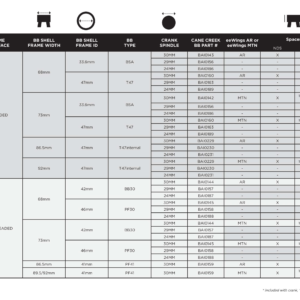

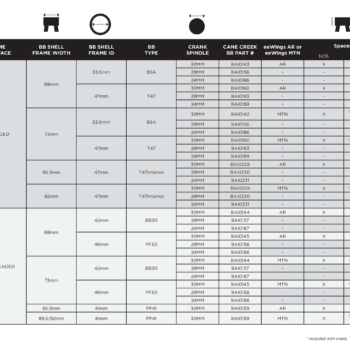

| BB Compatibility | 30mm spindle only. BSA73mm, PF92, PF89.5, BB30, PF30, T47, 392EVO |
| Q-Factor | 176mm |
| Chainring Interface | 3-bolt direct mount or 110bcd x 5 bolt chainrings via Cane Creek spider (sold separately) |
| Finish | Brushed titanium, Laser Etched Graphics |
| Warranty | 10 Years |
| ISO Testing Standard | Well exceed ISO testing requirements |
CNC'd Aluminum Preloader
The small details are often the ones that make the biggest difference. eeWings come with a fully machined, 7000 series aluminum preloader for precisely setting the preload on your bottom bracket bearings and ensuring a perfect fit with your frame.
- Titanium pinch bolt
- 2.5mm head for confident, secure adjustment.
- Also available individually for use on other, third-party cranks
Hirth Joint
- Characterized by its radial, sawtooth profile
- Compact and lightweight.
- Minimizes overlapping and redundant material yet maintains incredible torsional rigidity with very few parts.
- Precision machined from 6/4 titanium.
- Promotes the most direct power transfer possible.
- Secured with a single, oversized stainless steel fixing bolt.
Lightweight & Stiff
At 400g eeWings are lighter than most carbon fiber cranks but offer the strength and reliability that none of them can offer. They’re easily the lightest & most bombproof cranks out there. Independently tested and confirmed to have one of the highest stiffness to weight ratios of any crank in the world.
