The light and responsive carbon frame of the new 785 Huez maximizes your explosive accelerations when the gradient increases. Using high-modulus fibers and minimalist Nano tubes, the construction of the frame offers optimized power transfer alongside flexibility to enable intense and prolonged efforts in the mountains.
PERFORMANCE 101
The technology you need: no more, no less. The new 785 Huez stands out thanks to a timeless design, with its finesse and curves and simple but effective technical choices. The integration of cables, axles, bottom bracket and seat post are designed to combine performance, simplicity of maintenance, and durability, without compromising the refined lines of the bike.
BEAUTIFUL SIMPLICITY
The geometry of the new 785 Huez makes it the ideal choice for climbers, designed for explosive accelerations on steep slopes, as well as for long and repeated efforts. Compact and with precise handling, it provides similar sensations to riding a race bike, but its position is also designed to offer the indispensable comfort required for long days in the high mountains.
BEST CHOICE FOR CLIMBING
Since the beginning, LOOK Cycle has brought French excellence and its unique know-how to mountain lovers. The new 785 Huez is no exception, embodying our vision of a performance bike for climbers.
A TRIBUTE TO CLIMBERS
TECHNICAL SPECIFICATIONS
Handlebar | LOOK LS3 ALLOY AERO (XS:38 /S:40 M/L:42 XL:44) |
---|---|
Stem | LOOK LS3 ALLOY (XS 90 / S 100 / M L 110 / XL 120) |
Seatpost | LOOK LS1 CARBON SUPER LIGHT 27.2 mm 350 mm |
Saddle | LOOK SHORT FIT DYNAMIC open fit |
Wheels | LOOK R 38 D CARBON SHIM BODY |
---|---|
Tires | HUTCHINSON FUSION 5 PERFORMANCE TUBELESS READY 700×25 |
Thru axles | X12 : M12 x 1.5 142×12 R / 100×12 F |
Derailleurs | SHIMANO ULTEGRA DI2 R8150 |
---|---|
Shifters | SHIMANO ULTEGRA DI2 R8170 |
Crankset | SHIMANO ULTEGRA R8100 52 x 36 |

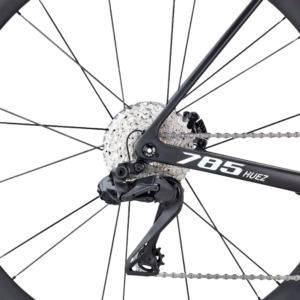

Cassette | SHIMANO ULTEGRA R8100 11 x 34 |
Bottom bracket | BB T47 TOKEN T47V24 PREMIUM BEARINGS |
Rotors | SHIMANO RT MT800 F: 160 mm R : 140 mm |
Chain | SHIMANO M8100 12 SPEED |
Weight | Frame only (size M): 980g | frame + fork (size M): 1370g |
---|
Please note that bike specifications are subject to change without prior notice.
GEOMETRY CHART
REGISTRATION BENEFITS
Register your LOOK Bicycle within 30 days to extend the warranty to a lifetime warranty, according to the terms of the warranty policy.
Scan QR code for Warranty Registration
or
https://www.lookcycle.com/sg-en/support/warranty-registration
For more information, please refer to
-
A simple and durable build

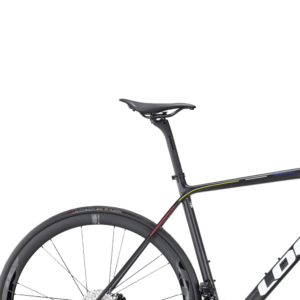

T47 bottom bracket, Ø 27.2mm seat post, and through-axle wheels are chosen to guarantee simplicity of assembly, disassembly, and maintenance without compromising on performance. The frame is guaranteed for life upon registration of the product.
-
Carbon core
The Nano tubes, thin and rounded, combined with high-modulus carbon fibers are the result of LOOK Cycle's unique expertise in carbon composites. Simple but effective choices aimed at achieving an unbeatable stiffness-to-weight ratio.
The new 785 Huez has a carbon composition specific to each frame size. It is designed to stiffen areas that are subjected to significant power transfer and to give flexibility to certain tube sections which increases comfort and road handling. To save weight, we have used specially developed Nano tubes reducing the thickness of carbon while maintaining the frame's performance and solidity.
-
Large tire clearance
The new 785 Huez accepts a tire section of up to 32mm, adapting to the latest technical evolutions and allowing for more versatile setups, notably tubeless wheels. This means that you can maintain optimal efficiency while increasing comfort and road handling.
-
A geometry made for climbing
Thanks to a specific geometry, the new 785 Huez is compact and handles precisely. The reach and stack have been optimized to offer you the best position when riding in the mountains. This guarantees performance, efficiency and comfort whether you climb standing or seated, for 1 minute or 1 hour.
-

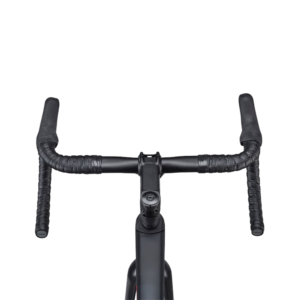

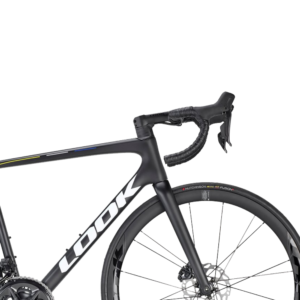

Cockpit integration
The cables and brake hoses are perfectly integrated into the handlebar and stem of the new 785 Huez, offering a sleek design and reducing aerodynamic impact. Not only simple to install and maintain, the integrated cockpit is ergonomically optimized.
The internal routing of the cables and brake hoses also offers superior reliability and durability. The frame design is simplified, the cables and hoses benefit from increased protection, and the headset offers a better seal as well as smoother operation.
