CHARACTERISTICS

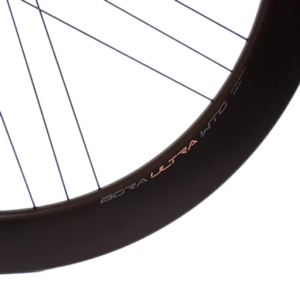

Campagnolo’s beautifully moulded carbon hub body is securely bonded to a light aluminium hub flange, and integrated radial spoke seats ensure perfect alignment. As with all Bora Ultra wheels, the rim bed is undrilled, making tubeless installation simple, and seriously increasing the rim’s integrity and torsional rigidity. It’s a sprinter’s, rouleur’s and time triallist’s dream. The 2-Way Fit rim is suitable for tubeless, tubeless-ready or clincher tyres in widths from 23mm, but is aerodynamically optimised for 25mm tyres.
Around 80% of the time in the saddle, riders typically encounter wind angles of between 10 and 20 degrees, and the Bora Ultra WTO 60 is unequalled at overcoming drag in this situation, occasionally yielding negative drag, also known as the sailing effect.

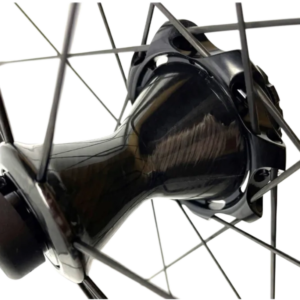

The hub’s hourglass shape and specially designed flanges reduce its frontal area and subsequent turbulence.

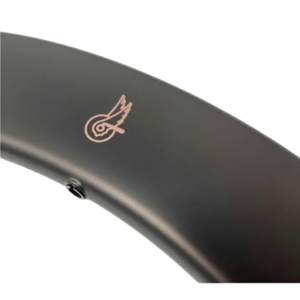

Campagnolo mould the nipple and valve holes into the rims, so no carbon fibres are cut by drilling
Each spoke hole has an internal nipple seat, wrapped into the rim’s carbon layup, which is specifically aligned to the intended hub
Aero Mo-Mag nipples are perfectly aligned with each spoke for a more accurate wheel build, with reduced localised stress and improved fatigue life.
All of the new Bora Ultra WTO wheels are designed for AFS (centerlock compatible) disc rotors.
Campagnolo’s unique G3 spoke system counteracts the main source of torque at each hub.
TECHNICAL SPECIFICATIONS
- 1,530 g
- Spokes: 24 Aero Elliptical, straight pull, double-butted 1.5mm
- Spoke pattern: G3
- Nipples: Aluminium Aero Mo-Mag, self-locking, internal
- Front: Bora Ultra,carbon body
- Rear: Aluminium body, 36 tooth ratchet freehub
- Hub width: 100-142mm
- Axle type: 12mm aluminium thru axle
- Bearings: CULT ceramic, cup and cone
- Brake interface: AFS disc
- Freehub compatibility: N3W, XDR, HG
- ASTM classification: 1
- Material: H.U.L.C. UD high-strength carbon fibre
- Finish: SMU
- Tyre interface: 2-Way Fit
- Tyre compatibility: Tubeless, tubeless-ready, clincher
- Recommended tyre size: 700c, from 23mm
- Rim height: 60mm
- Internal width: 19mm
- External width: 26.1m
- The Bora™ Ultra WTO™ 60 Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability.
Comes with:
- Aero Mo-Mag nipple maintenance kit
- Tubeless valves
- AFS lockrings
- Campagnolo wheel bags
- Campagnolo accessories bag
- Tyre levers
